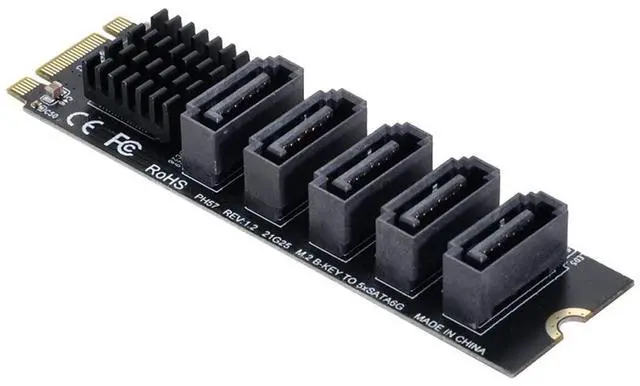

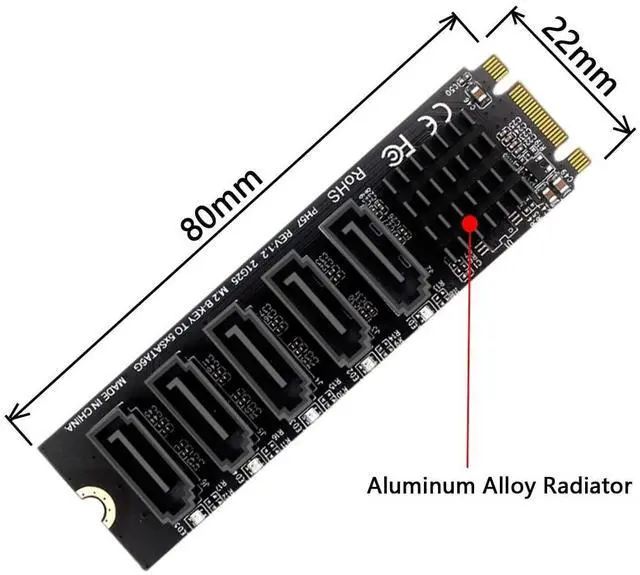

cablecc NGFF Key B+M to SATA 3.0 6Gbps 5 Ports Adapter Converter Port JMB575 2280

Item #: 9SIVNKXKS33542
Mfr. Part #: 401917677895

Be the first to review this product...

JMB575 is a single chip solution. It integrated 6 independent SATA channels and a micro-processor.

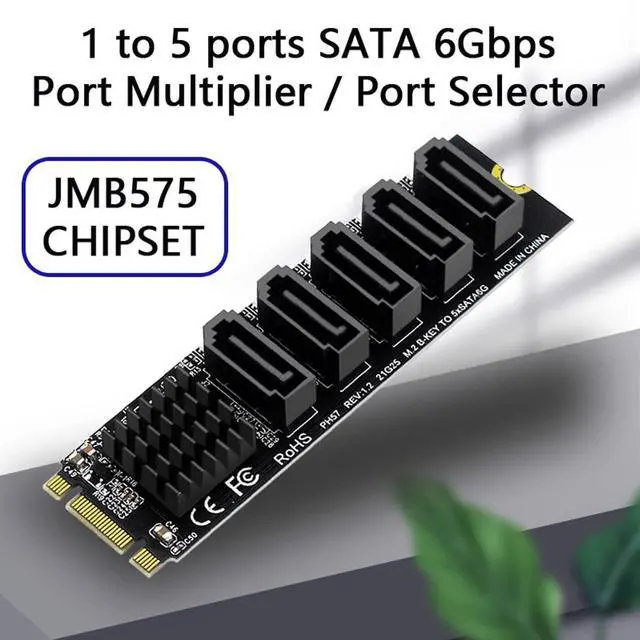

With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port or a 5 to 1 port SATA 6Gbps Port .
JMB575 supports cascaded mode which enables maximum 15 drives connected to one host.
Key Features Comply with Serial ATA Port Spec. Revision 1.2 Comply with Serial ATA Port Spec. Revision 1.0 Support 6 port SATA 6Gbps interface Supports BIST and loopback mode Support command-based and FIS-based switching Support PM aware and non-PM aware host

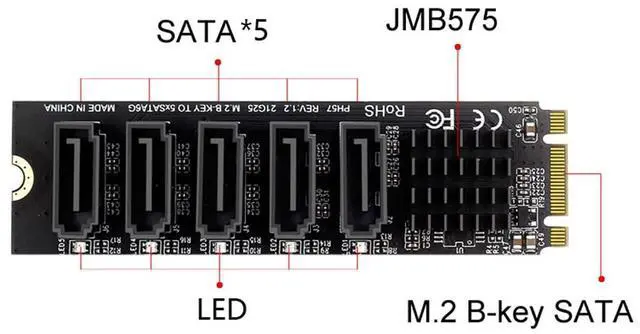

Main control chip: JMB575. Interface: 5 * SATA3.0 interface. Applicable slot: NGFF Key B+M.

Overview

Specs

Reviews

NGFF Key B+M to SATA 3.0 6Gbps 5 Ports Adapter Converter Port JMB575JMB575 is a single chip solution. It integrated 6 independent SATA channels and a micro-processor. With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port or a 5 to 1 port SATA 6Gbps Port Selector. JMB575 supports cascaded mode which enables maximum 15 drives connected to one host. Key FeaturesComply with Serial ATA Port Spec. Revision 1.2C omply with Serial ATA Port Spec. Revision 1.0S upport 6 port SATA 6Gbps interfaceSupports BIST and loopback modeSupport command-based and FIS-based switchingSupport PM aware and non-PM aware hostMain control chip:
JMB575Interface: 5 *
SATA 3.0 interfaceApplicable slot: NGFF Key B+M
