MPG X570S CARBON MAX WIFI
Exclusive feature
Core Boost Technology
8+4 pin CPU power connectors and optimized power circuits let CARBON MAX unleash maximum performance.
6 layer PCB
6 layer PCB improves signal transmission for high performance capabilities across the motherboard.
2oz Thickened Copper PCB
An enhanced PCB material design improves heat dissipation and high-performance capabilities.
Audio Boost 5
Isolated audio circuitry with a high quality audio processor & amp for immersive gaming experiences.
14+2 Power Design with Digital PWM
An aggressive digital VRM power design with digital PWM IC and 14 Duet Rail CPU Power System with 75A Smart Power Stage reliably drives the CPU even during heavy workloads.
PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.
MPG X570S CARBON MAX WIFI
premium thermal solution
Premium Thermal Design
Heavy plated MOSFET heatsink with heat-pipe, high quality 7W/mK MOSFET thermal pads and extra choke thermal pads sustain high performance multi-core processors.
M.2 Shield Frozr
Sustain maximum high-speed M.2 SSD data transfer with M.2 SHIELD FROZR and prevent SSD thermal throttling.
Pump Fan Support
Control watercooling pump speeds for flowrate and noise control.
Silent Cooling
The updated chipset heatsink is enlarged and fanless.
MPG X570S CARBON MAX WIFI
HIGH-SPEED TRANSMISSION
Intel Wi-Fi 6E
Featuring the latest wireless solution, delivering speeds up to 2400Mbps on the 6GHz spectrum and supports MU-MIMO and BSS color technology.
2.5G Network Solution
Onboard 2.5 Gigabit Ethernet LAN with LAN manager.
DDR4 BOOST
The memory circuit design has been optimized on a reserved section of the motherboard fully isolated from other circuits.
Lightning Gen 4 Solution
Transfer data lightning fast across Gen 4 PCI-E and M.2 with up to 64GB/s bandwidth.
14 + 2 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design built with a total of 14 Duet Rail Power System (DRPS). Combining 8+4-pin power connectors and exclusive Core Boost technology, MPG series motherboard is ready to sustain heavy daily work.
CORE BOOST
Core Boost combines a reserved zone of optimized circuits and premium power delivery components to create a highly efficient power system capable of precise current output to the CPU.
LIGHTNING GEN 4 SOLUTION
Strike fast with MSI Lightning Gen 4 PCI-E. Attach ultra fast PCI-E 4.0 devices and enjoy up to 64GB/s unidirectional transfer bandwidth. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.
CUSTOMIZE YOUR GAMING RIG
Personalize your PC with RGB LED lighting capable of 16.8 million colors with dynamic effects through the Mystic Light APP. A built-in LED switch on the motherboard instantly turns lighting on or off.
WI-FI 6E & BLUETOOTH
Connect to a high-speed Wi-Fi network with onboard Wi-Fi 6E. OFDMA and two-way MU-MIMO technology optimize data transmission and deliver speeds up to 2.4Gbps.
MAXIMIUM DATA TRANSFER WITH 2.5G LAN
MPG X570S CARBON MAX WIFI features onboard 2.5Gbps Ethernet LAN, for gamers and power users who demand high-bandwidth and low-latency network connectivity. Prioritize latency-sensitive applications with MSI LAN Manager for a superior online experience.
USB Type-C ready - Rear IO & Front Case Panel Support
Effortlessly plug in devices with reversible USB Type-C.
AMPLIFY YOUR EXPERIENCE WITH AUDIO BOOST 5
Like a dedicated sound card, Audio Boost 5 offers a HD audio processor, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by the ALC 4080 audio processor, this motherboard supports 120dB SNR, 32-bit/384kHz and DSD Super Audio CD playback & recording.
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB material design with 2oz thickened copper increases conductivity, improving heat dissipation and high-performance reliability.

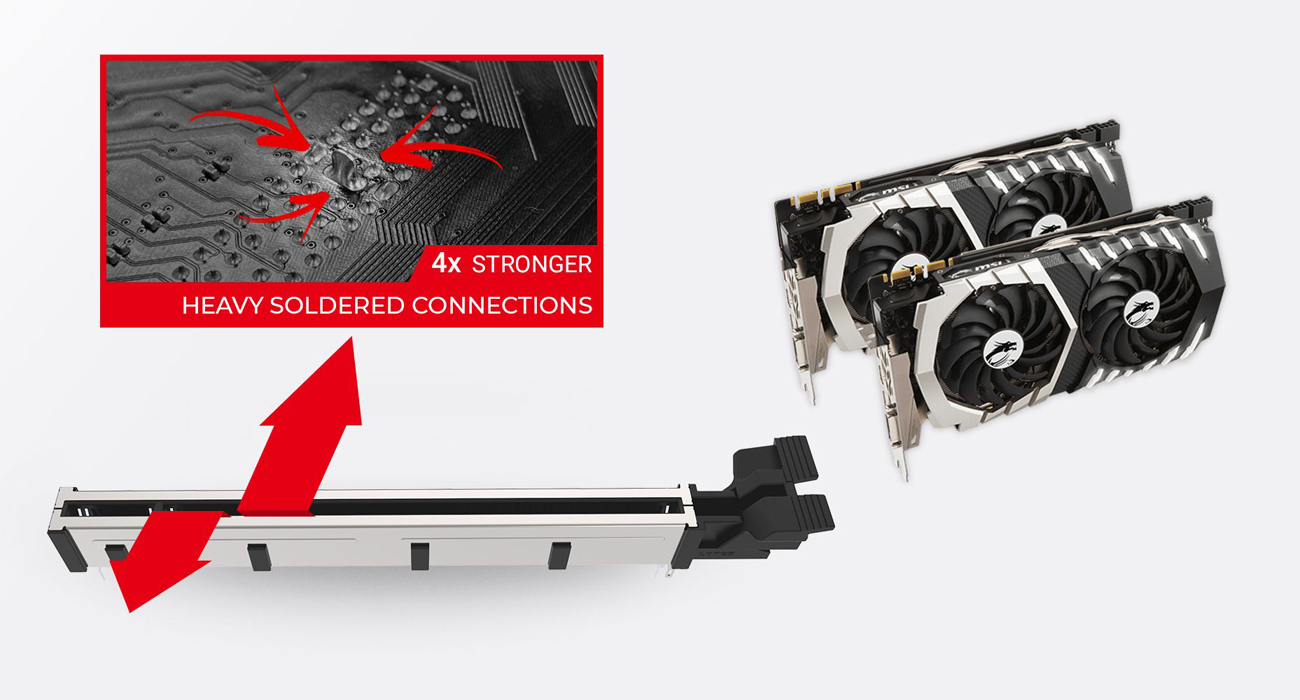

MULTIPLE GPU SUPPORT AND PCI-E STEEL ARMOR
MPG X570S CARBON MAX WIFI supports AMD CrossFire™ multi GPU technology. PCI-E slot placements provide optimal airflow for graphics card cooling. MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage counts, Steel Armor shields the point of contact from electromagnetic interference.
