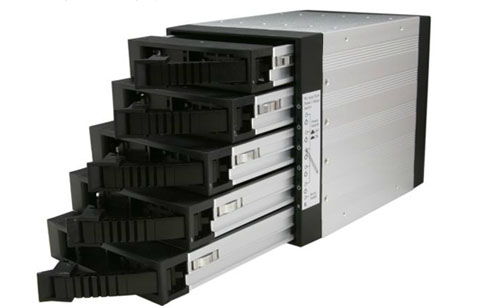

iStarUSA BPU-350SATA Three 5.25in. to Five 3.5in. SAS/SATA 6.0Gbps Hot-Swap Cage
- Stylish aluminum color handle and heat-sink body
- Supports hot-swap and RAID configuration (needs an additional RAID controller)
- Aluminum design with conductive dissipation grooves
- Power, fan and high temperature LED indicators
- High performance transfer rate up to 6.0Gbps
- Supports 2.5in. / 3.5in. SAS I/II and SATA I/II/III HDDs
- Equipped with fan speed control switch
- 4TB hard drive compatible
High level RAID and high availability storage in a compact design, BPU-350SATA series adds extra storage and hot-swap capability to satisfy any application needs. The BPU-350SATA is constructed of aluminum material that provides the best heat dissipation required for high-performance SAS/SATA drives. It is designed with excellent front to back vent airflow. The BPU-350SATA is an ideal solution for internal server RAID and JBOD applications. Aluminum body and extra 80mm cooling fan subsystem complete a high end data storage server or workstation.
Specifications
| Model Number | BPU-350SATA |
|---|---|
| RoHS Compliance Version | Yes |
| Standard Drive Bays |
5.25in. Drives: Three Hotswap 3.5in. Drives: Five |
| Hotswap HDD Type: | 3.5in. SAS I/II and SATA I/II/III |
| Indicators | Power, HDD, fan, and high temperature |
| Material of Front Bezel | Aluminum |
| Material of Handle | Aluminum |
| Material of Main Chassis | Aluminum Design with Conductive Dissipation Grooves |
| Color of Front Bezel | Black, Blue, Red, and Silver |
| Color of Main Chassis | Black |
| Cooling Fan | 1 x 80mm |
|
Ordering Information (Part Number) |
Black Tray:BPU-350SATA-BLACK Blue Tray:BPU-350SATA-BLUE Red Tray:BPU-350SATA-RED Silver Tray:BPU-350SATA-SILVER Lockable Tray:BPU-350SATA-BPL |
| Dimensions (HxWxD) | 4.96in. x 5.75in. x 8.11in. (126.0mm x 146.0mm x 206.0mm) |
What's in the Box
