Equipped with a high-quality 105°C main capacitor, it ensures outstanding durability and consistent performance even under high temperatures. With comprehensive protection mechanisms and a 5-year warranty, the Smart BX3 Pro 650W is designed to deliver dependable performance and long-lasting value for users who demand efficiency and reliability.
The Smart BX3 Pro 650W fully complies with the Intel ATX 3.1 specification, supporting Intel C6/C7 low power states and ErP readiness for enhanced energy efficiency. It delivers 650W of continuous power at 40°C, meeting strict power timing standards to ensure system stability and full compatibility with modern PC builds.
With a native PCIe Gen 5.1 12V-2×6 connector and low-profile etched flat cables, the Smart BX3 Pro 650W ensures better airflow and easier cable management for modern GPUs. Its high-amperage +12 V rail, high-quality 105°C main capacitor, and DC-to-DC design delivers stable and efficient power to meet next-gen performance demands.
Notes:
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufactures before using the 12VHPWR cable.
Built-in protections including Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP), and Short Circuit Protection (SCP) safeguards your system against electrical faults, providing peace of mind and reliable operation.
OCP
Over Current Protection
OVP
Over Voltage Protection
UVP
Under Voltage Protection
OPP
Over Power Protection
SCP
Short Circuit Protection
OTP
Over Temperature Protection

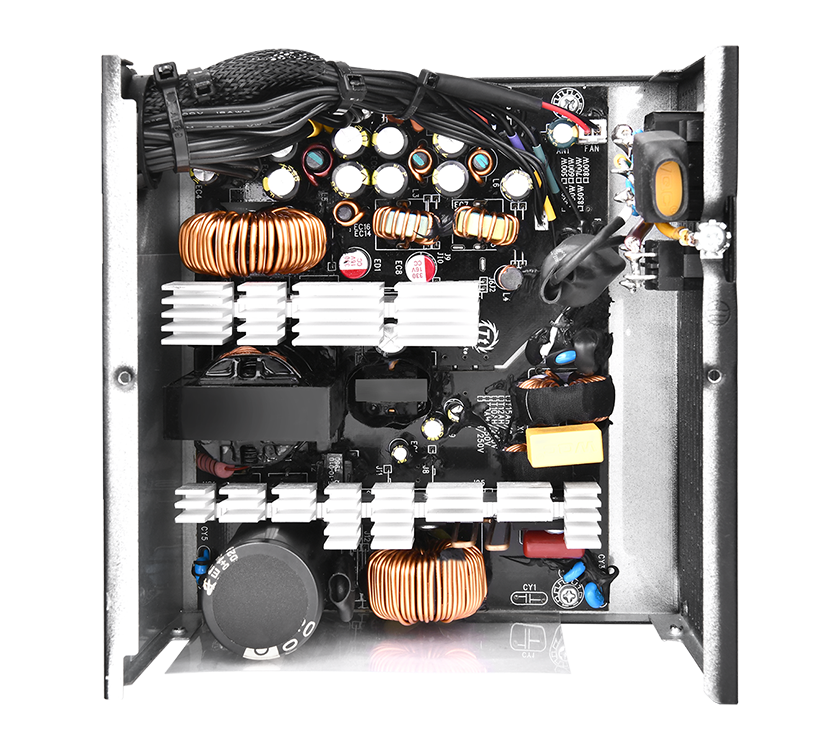

The Smart BX3 Pro series features a powerful single +12V rail combined with an advanced DC-to-DC design, delivering precise voltage regulation and stable power output for every component.
| AC Input | Input Voltage: 100-240V~ Input Current: 15A-6A Frequency: 50Hz/60Hz |
||||
| DC Output | +3.3V | +5V | +12V | -12V | +5VSB |
| Max Output Current | 18A | 18A | 54.2A | 0.3A | 3A |
| Max Output Power | 110W | 650W | 3.6W | 15W | |
| Total Power | 650W | ||||
Designed with low-profile etched flat cables, the Smart BX3 Pro 650W makes cable management effortless and enhances overall system airflow. The streamlined cable layout not only helps users achieve a clean and organized build but also ensures efficient power delivery to all key components for a stable, clutter-free setup.
| Connector Type | Connector Quantity | Cable Quantity | Cable Length | |
| Main Power (24Pin) | X 1 |
|
X 1 | 600mm |
| ATX 12V (4+4Pin) | X 2 |
|
X 1 | 650mm+150mm |
| PCIe (6+2Pin) | X 2 |
|
X 1 | 500mm+150mm |
| PCIe (12+4Pin) 450W | X 1 |
|
X 1 | 600mm |
| SATA (5Pin) | X 4 |
|
X 2 | 500mm+150mm+150mm+150mm |
| Peripheral (4Pin) | X 4 |
Certified for 80 PLUS® Bronze with up to 85% efficiency, the Smart BX3 Pro 650W delivers continuous and stable power output at 40 °C. It minimizes energy loss and enhances system performance, making it a reliable and efficient choice for modern PC builds.

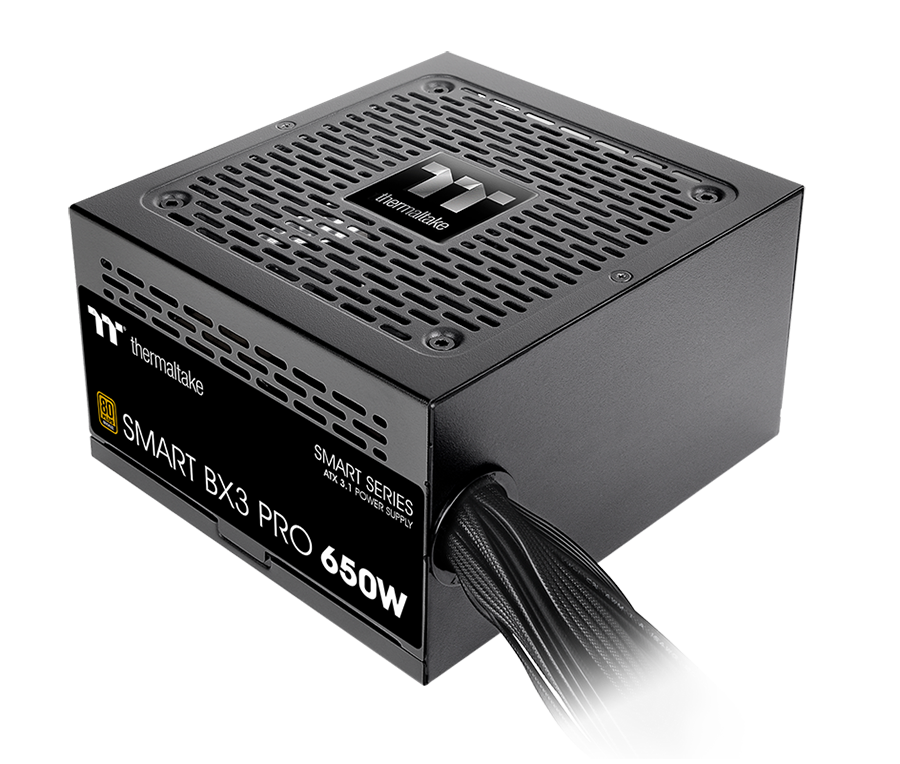

With a compact design of 150mm (W) x 86mm (H) x 140mm (D), the Smart BX3 Pro 650W fits seamlessly into most PC cases. Its standard ATX dimensions make installation simple and space-efficient, providing users with a clean, organized build layout without compromising power performance.
