C Series Compact Industrial Thermal Label Printer

A compact label printer ideal for applications that require an efficient use of space, yet with the capacity to perform like industrial sized barcode label printers! C Series printers can be used throughout your entire enterprise.

The C Series represents CognitiveTPG's most versatile line of thermal label printers. Its small desktop size holds the performance associated with big box printers. The C Series printers deliver value and functionality to fit multiple applications and industries, from warehouse floor to the pristine pharmacy environment.

Features

C Series
  • Rugged and reliable, all-metal printer mechanism for high volume printing applications
  • Die-cast metal user interface to withstand harsh environments
  • Menu-driven LCD controls for easy set-up without a computer
  • Full connectivity suite, including internal Ethernet, USB ports and serial or parallel communication ports
  • Fast print speeds up to 8ips
  • Real-time clock (RTC) for date- and time-sensitive applications
  • 8" OD roll capacity for continuous printing

Industries

  • C SeriesEntertainment
  • C SeriesTransportation & Logistics
  • C SeriesRetail
  • C SeriesHealthcare
  • C SeriesDistribution
  • C SeriesServices
  • C SeriesManufacturing
  • C SeriesGovernment

Highlights

Metal vs. Plastic
One touch tells you that this is not a plastic printer. We know the environment and the workload the C Series printers must endure. Using solid metal framing, print mechanism, and components gives it the rugged and industrial strength to stand up to some of the most challenging environments. This industrial build is what enables the C Series to compete with table top printers.

Flexibility Provides Versatility
The C Series delivers flexibility and versatility to meet mostly any applications. For on-demand printing applications, the C Series small footprint, LCD menu, and USB-A port provides a user friendly solution. With high volume printing, the back expands to accommodate an 8 inch roll to maintain its compact footprint. The C Series also offers a 300dpi print solution for high resolution and graphics printing.

C Series

Stand Alone Application
Use the USB-A port to attach scanner or keyboard and the LCD menu for on-demand labeling.

C Series

All-Metal Build for Increased Reliability
One touch and lift of this printer will tell you this is no cheap, plastic component printer. We understand the workload these printers endure which is why we use metal in all critical components so the printer can stand up to daily wear-and-tear.

C Series

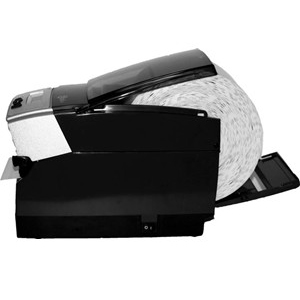

8" OD Roll Capacity
Back drops out so you can insert a 8" OD Roll capacity for high volume applications, equivalent to some of the larger table top printers.

TECHNICAL SPECIFICATIONS

  2-Inch Model 4-Inch Model
PRINT
Method Direct Thermal or Thermal Transfer Direct Thermal or Thermal Transfer
Width (max) 2.118" (53.8mm) 4.094" (104mm)
Length (max) 322" (8179mm) 322" (8179mm) at 203dpi
Speed (max) 8ips (203.2mm/sec) with LCD display 8ips (203.2mm/sec) with LCD display
Resolution 203dpi (8dpmm). Optional 300dpi (12dpmm) 203dpi (8dpmm). Optional 300dpi (12dpmm)
MEDIA
Width 0.75 - 2.84" (10 - 72mm) 2 - 4.63" (50 - 119mm)
Roll Diameter 8" (203mm) 8" (203mm)
Ribbon Length (TT only) 6500" (165mm) 5500" (140mm)
Indexing Continuous, gap, black bar, black mark, notch
Media Caliper Up to .01" (0.254mm) Up to .01" (0.254mm)
BARCODES
Add2, Add5, Codabar, Code39, Code93, Code 128A/B/C, D2of5, I2of5, S20f5, EAN8, EAN13, EAN128, MSI/I1, Plessey, Postnet, UPCA/A+/E/E1
FONTS
Bitmapped 7 Styles with up to 10 x 10 magnification, variable boldness and spacing
International Sans serif font in 7 pt. sizes, up to 4 x 4 magnification, variable boldness and spacing
Scalable Smooth Fonts 3 Ultra Font styles for smooth characters in any size and boldness
Rotations 0, 90, 180, 270 degrees
Optional Kanji, Korean, and OCR fonts available
GRAPHICS
PCX and BMP formats
MEMORY
RAM - 16MB, Flash - 8MB
COMMUNICATIONS
USB-A/B, Serial or Parallel, Ethernet (internal)
REAL-TIME CLOCK (RTC)
Standard, All Models
ELECTRICAL
Auto-ranging 100 ~ 240VAC, 50 - 60 Hz, 24VDC output
ENVIRONMENTAL
Operates at 41 - 104°F (5 - 40°C)
PHYSICAL CHARACTERISTICS
Width 5" (127mm) 6.9" (175mm)
Height 7.1" (181mm) 7.1" (181mm)
Depth 10.04" (255mm) 10.04" (255mm)
Weight (DT/TT) 5.02 lbs (2.28kg) / 5.23 lbs (2.38kg) 5.91 lbs (2.69kg) / 6.10 lbs (2.77kg)
ACCESSORIES
Start-up guide, power supply, Windows driver, programmer's guide, NiceLabel design software, 8" OD media roll adapter, USB cable. Optional communication cables
WARRANTY
Printer 24 Months from date of purchase (requires registration and excludes printhead)
PROGRAMMING LANGUAGE
Cognitive Programming Language (CPL), EcPL and ZcPL language emulation. Optional laser printer emulation (PCL5)
