NETGEAR®
BUSINESS

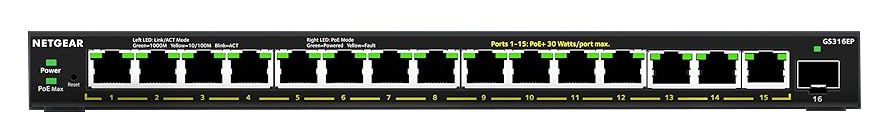

16 Port Gigabit Easy Smart Managed Essentials Switch with PoE+ (180W)
[ GS316EP ]
Control and Configure Beyond Plug-and-Play
Highlights
- Enable network configuration and management at the price point of unmanaged switches
- Simple, yet useful network set-up on top of plug-and-play connectivity
- Business-friendly and easy-to-use web browser-based management GUI
- VLAN support for traffic segmentation
- Quality of Service (QoS) for traffic prioritization
- Auto “denial-of-service” (DoS) prevention
- Troubleshoot connection issues via cable test
- Loop prevention1, loop detection2, and broadcast storm controls
- Rate limiting for better bandwidth allocation
- Port mirroring for network monitoring
- Jumbo frame support
- Advanced features such as per port PoE controls
- Uninterrupted PoE keeps PoE power on even when the switch is updating firmware or performing software reboot
- 802.3at standard offering 30W/port
- Fanless and versatile mounting option (desktop and wall-mountable)

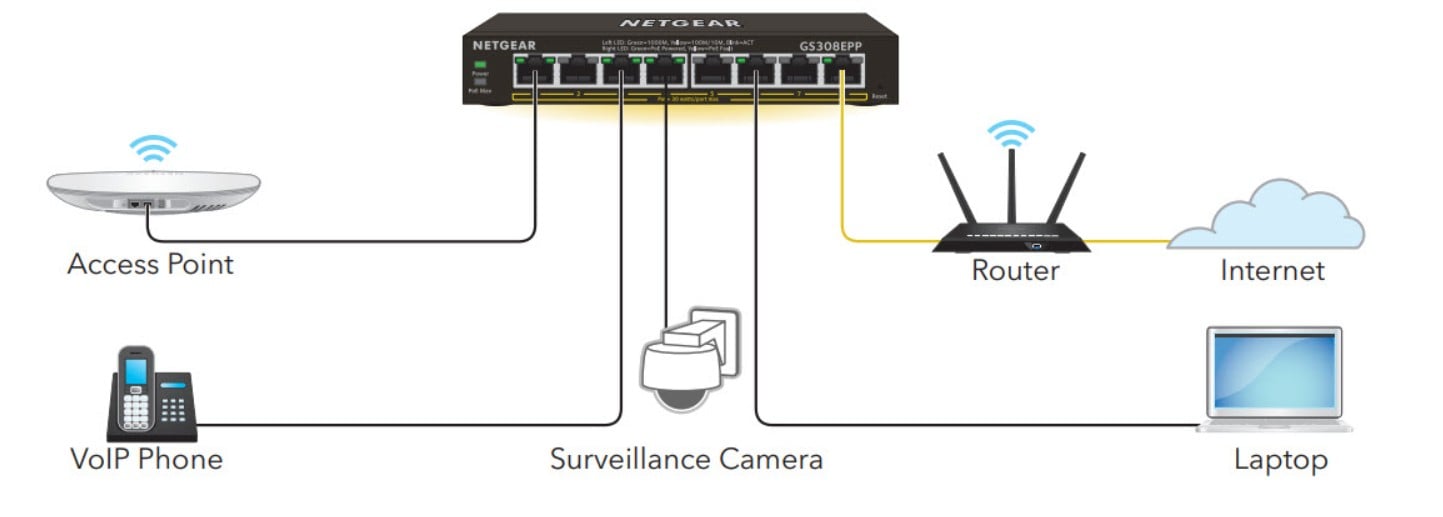

Small Office/Home Office Network Diagram
1. Applies to GS316EP, GS316EPP
2. Applies to GS305EP, GS305EPP, GS308EP, GS308EPP
Whatever Your Networking Needs, NETGEAR Business has You Covered
Trusted by 50 Million Businesses Worldwide
Industry Leading Performance for Over 25 Years

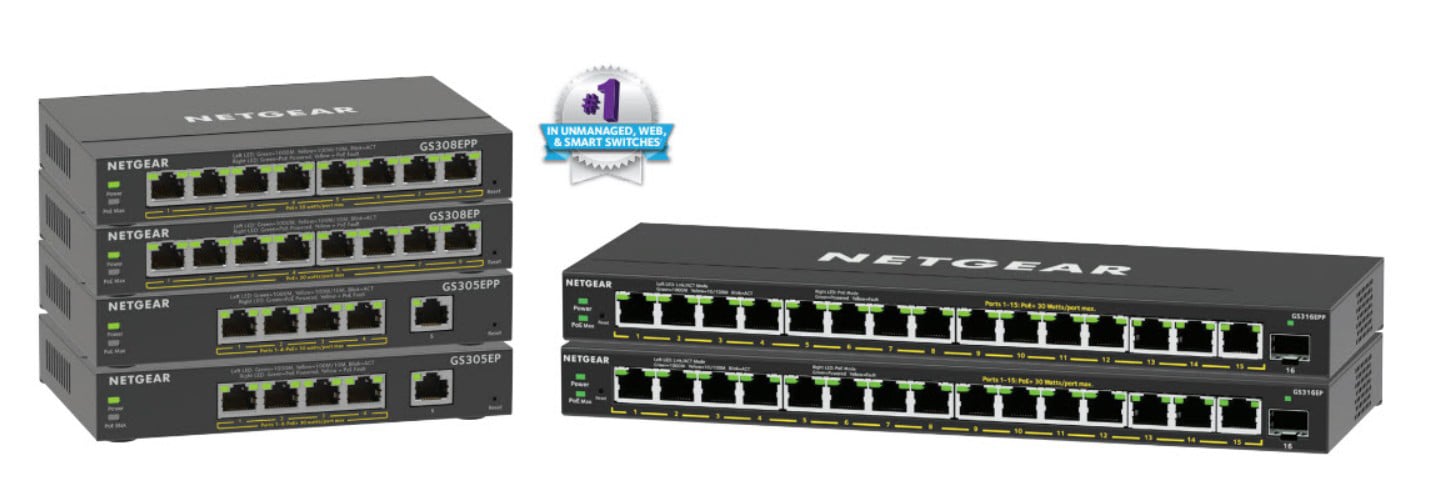

Technical Specifications
|
Features |
GS305EP |
GS305EPP |
GS308EP |
GS308EPP |
GS316EP |
GS316EPP |
| 10/100/1000 RJ45 Copper Ports (Auto Uplink) | 5 | 5 | 8 | 8 | 16 | 16 |
| Enclosure | Metal | Metal | Metal | Metal | Metal | Metal |
| Connector Type | Metal | Metal | Metal | Metal | Metal | Metal |
|
PoE |
||||||
| # of PoE ports | 4 | 4 | 8 | 8 | 15 | 15 |
| # of PoE+ 802.3at Ports | 4 | 4 | 8 | 8 | 15 | 15 |
| SFP ports | 0 | 0 | 0 | 0 | 1 | 1 |
| Total PoE/PoE+ Budget | 63W | 120W | 62W | 123W | 180W | 231W |
| Advanced PoE Controls | Yes | Yes | Yes | Yes | Yes | Yes |
| PoE Scheduling | No | No | No | No | Yes | Yes |
| Uninterrupted PoE | Yes | Yes | Yes | Yes | Yes | Yes |
