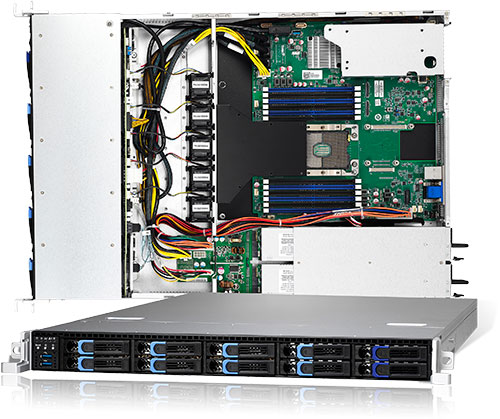

Thunder SX GT62F-B5630

B5630G62FV2E8HR

1U1S SERVER/STORAGE PLATFORM

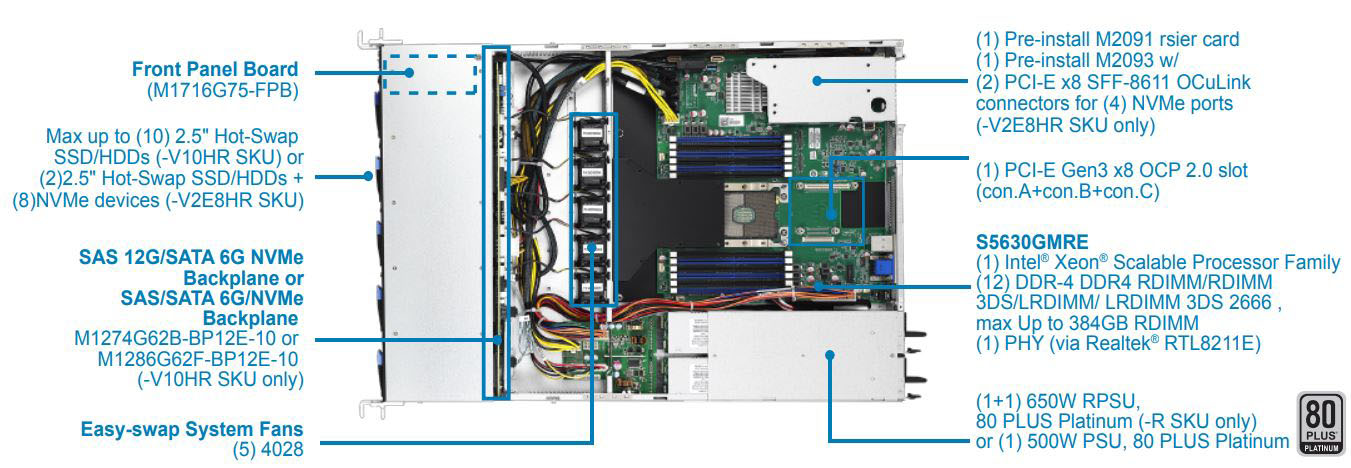

1U designed for hybrid NVMe/SATA cache storage applications

• Max up to (10) 2.5" Hot-Swap SSD/HDDs (-V10HR SKU) or Max up to (2) 2.5" Hot-Swap SSD/HDDs + (8) NVMe devices (-V2E8HR SKU)
• Single LGA3647 socket supports (1) Intel® Xeon® Scalable Processor Family
• (12) DIMM slots DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666
• Support up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS

  * Follow latest Intel DDR4 Memory POR

• Max up to (1) PCI-E Gen3 x16 slot (-V10HR SKU only)
  (1) PCI-E Gen3 x8 OCP 2.0 slot (con.A+con.B+con.C)
• (1) PHY port (via Realtek® RTL8211E)
• Onboard BMC w/ IPMI and iKVM support
• (1+1) 650W RPSU, 80 PLUS Platinum (-R SKU only)
  (1) 500W PSU, 80 PLUS Platinum
