80 PLUS Gold certified fully modular power supply with PCIe Gen5.1 native connector, high amperage +12V rail, advanced DC-DC & LLC design, Japanese capacitors, and industry-grade protections optimized for next-gen GPUs and ATX 3.1 systems.
Built to meet Intel ATX 3.1 power supply requirements and equipped with a native 12+4pin PCIe Gen5.1 modular connector to support next-generation GPUs.
Notes:
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufactures before using the 12VHPWR cable.

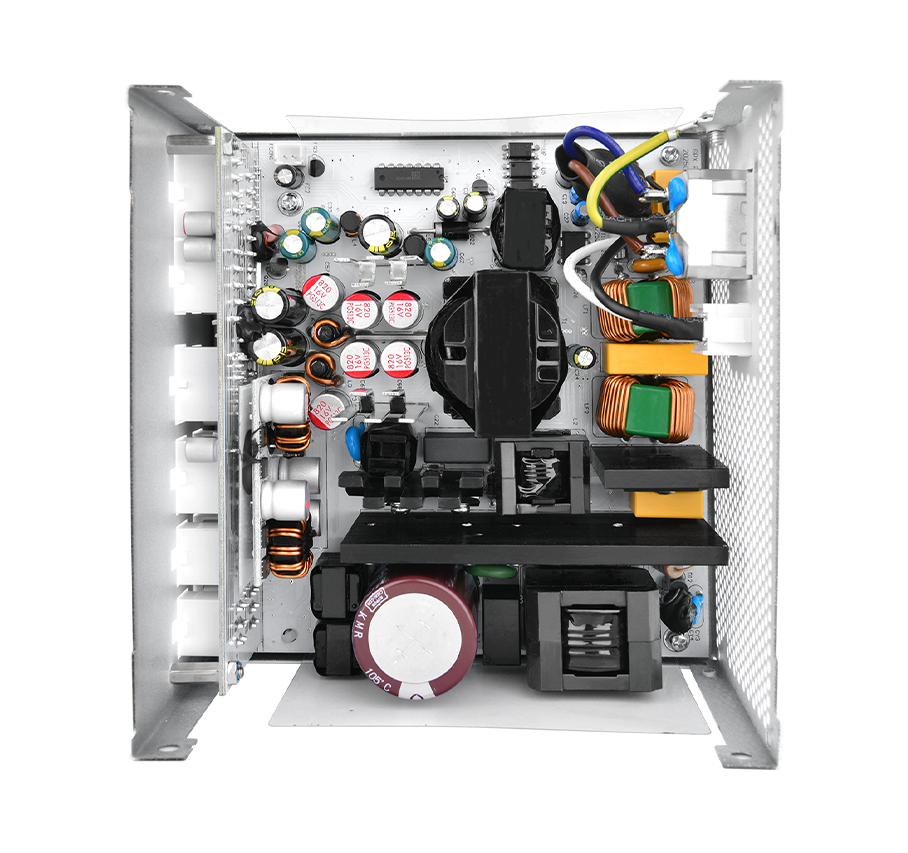

All main capacitors are high-quality Japanese-made for long-lasting reliability and stability under heavy loads.
Provides stable and powerful +12V output with precise voltage regulation for high-performance systems.
| AC Input | Input Voltage: 100-240V~ Input Current: 12.0A Max. Frequency: 47Hz - 63Hz |
||||
| DC Output | +3.3V | +5V | +12V | -12V | +5VSB |
| Max Output Current | 20A | 20A | 70.5A | 0.3A | 2.5A |
| Max Output Power | 110W | 846W | 3.6W | 12.5W | |
| Total Power | 850W | ||||

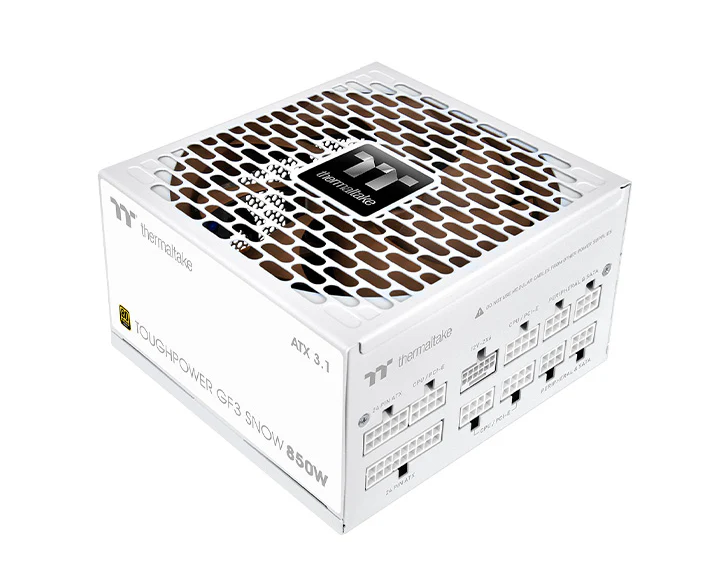

High efficiency Zero Cable platform with low-profile flat cables improves airflow and cable management.
| Connector Type | Connector Quantity | Cable Quantity | Cable Length | |
| Main Power (24Pin) | X 1 |
|
X 1 | 550mm |
| ATX 12V (4+4/8Pin) | X 2 |
|
X 2 | 700mm |
| PCIe (6+2Pin) | X 4 |
|
X 2 | 600mm+150mm |
| PCIe (12+4Pin) 600W | X 1 |
|
X 1 | 600mm |
| SATA (5Pin) | X 6 |
|
X 2 | 450mm+150mm+150mm |
| Peripheral (4Pin) | X 4 |
|
X 1 | 450mm+150mm+150mm+150mm |
Built-in protections including Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP), and Short Circuit Protection (SCP) safeguard your system against electrical faults, providing peace of mind and reliable operation.
OCP
Over Current Protection
OVP
Over Voltage Protection
UVP
Under Voltage Protection
OPP
Over Power Protection
SCP
Short Circuit Protection
OTP
Over Temperature Protection
Delivers up to 90% power conversion efficiency under real-world load conditions, reducing wasted energy and heat.
Supports Intel Deep Power Down C6/C7 states, ErP ready, and complies with Energy Star, RoHS, and WEEE standards.
