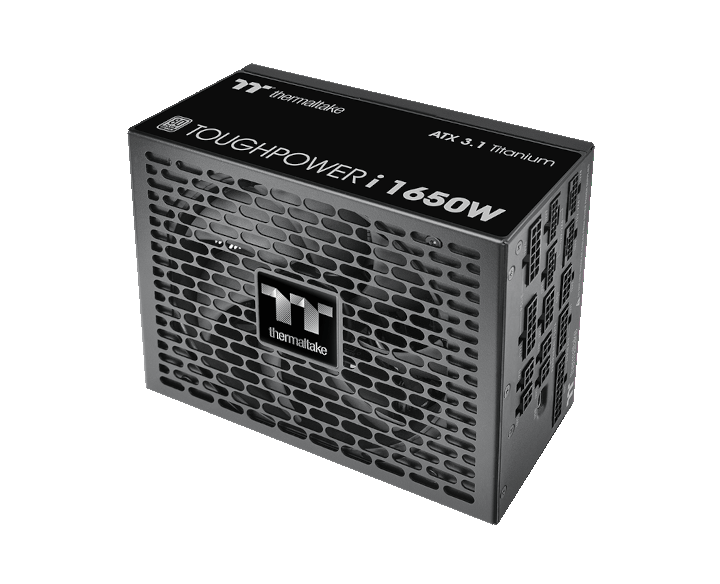

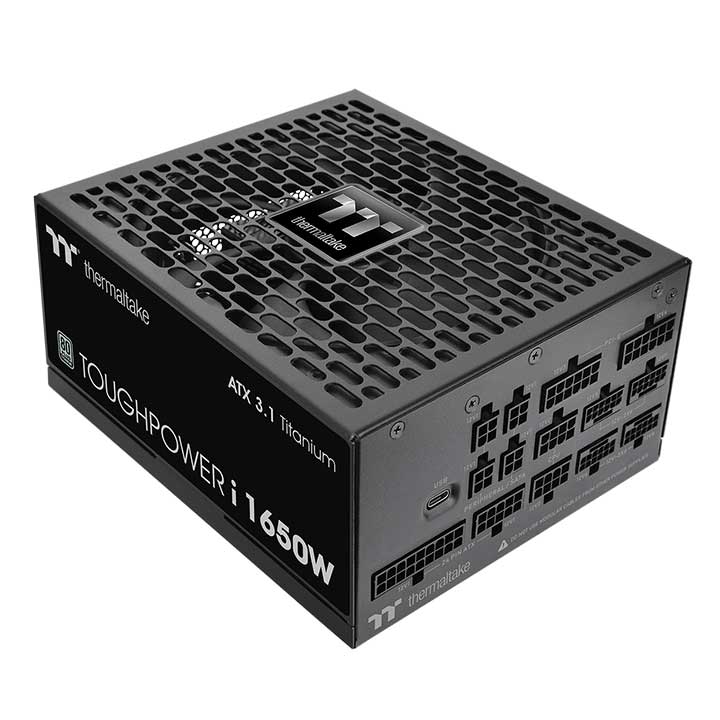

Toughpower i1650W is an 80 PLUS Titanium certified digital PSU, fully compatible with ATX 3.1 specifications and built for high-performance workstations supporting up to 1650W and four native PCIe 12V-2x6 connectors.
It offers real-time power monitoring via TT RGB PLUS software and switchable single/multi-rail mode for ultimate stability and control.

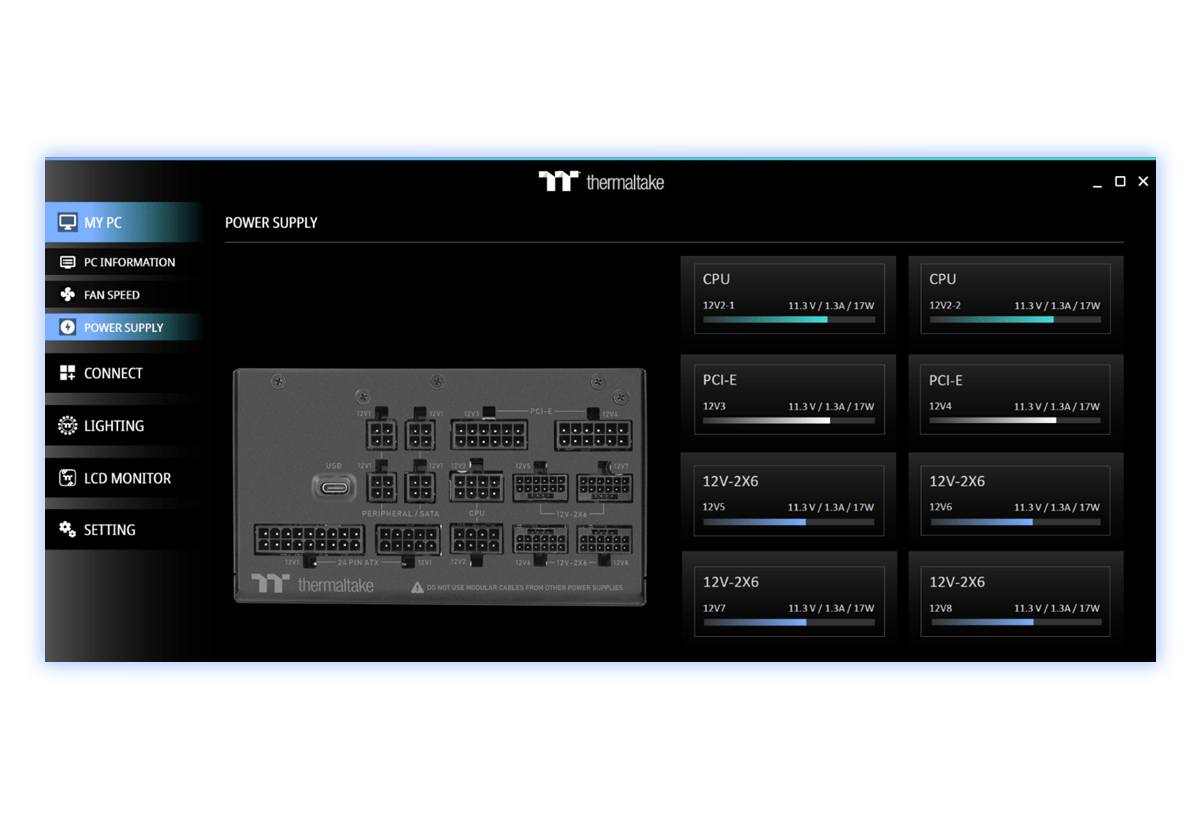

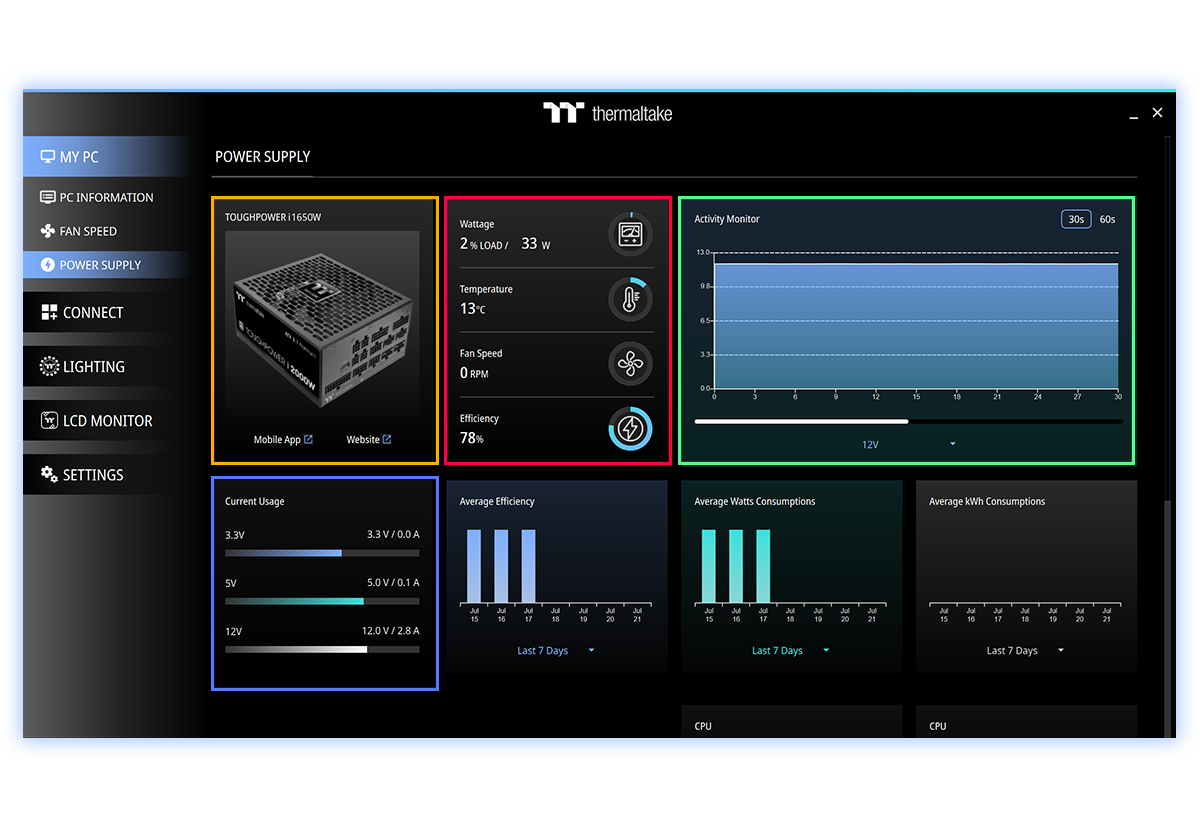

Built on a powerful digital platform, the Toughpower i1650W lets you monitor wattage, voltage, efficiency, and temperature in real time via the TT RGB PLUS software on desktop or mobile. Stay in control. Stay protected.
With real-time monitoring, single/ multi rail mode switching, and Smart Zero Fan control via TT RGB PLUS software, you gain full command over performance, efficiency, and protection.

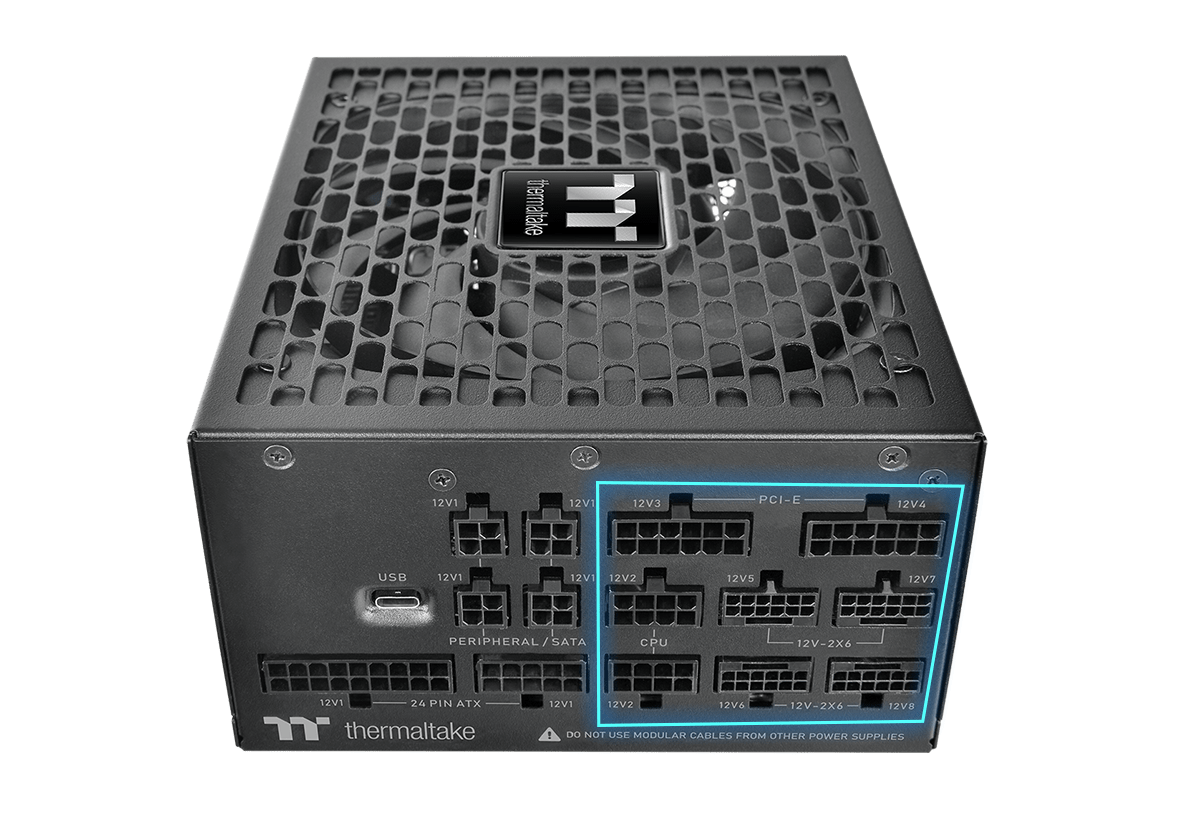

Monitor power usage in real time for PCI-E, CPU, and 12V-2x6 outputs via software, while switching between single and multi rail modes to optimize protection for overclocking or multi GPU setups.
Toughpower i1650W is fully compatible with Intel ATX 3.1 specifications, supporting up to 200% power excursion, reaching 60% efficiency at low load, and meeting all required power supply timing standards.

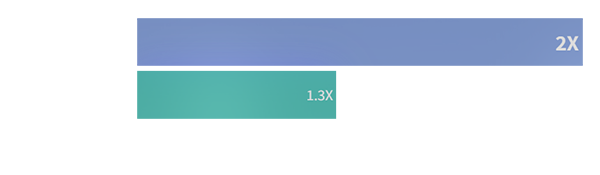

2X Total Power Excursion
3X GPU Power Excursion

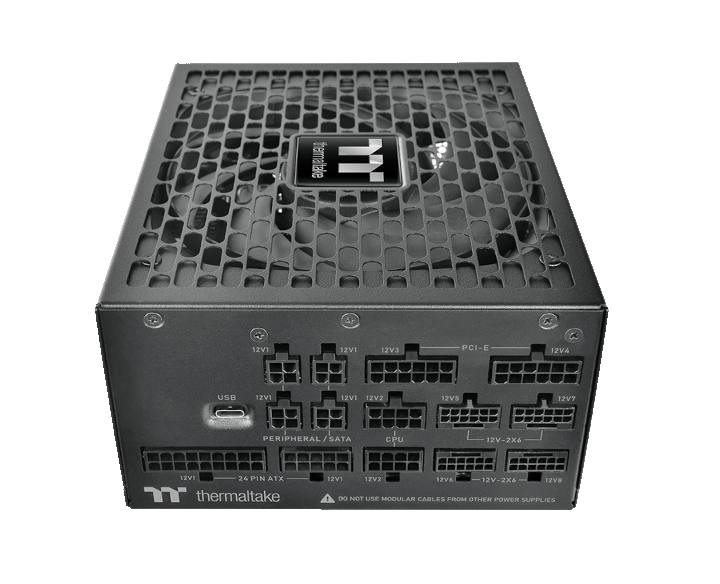

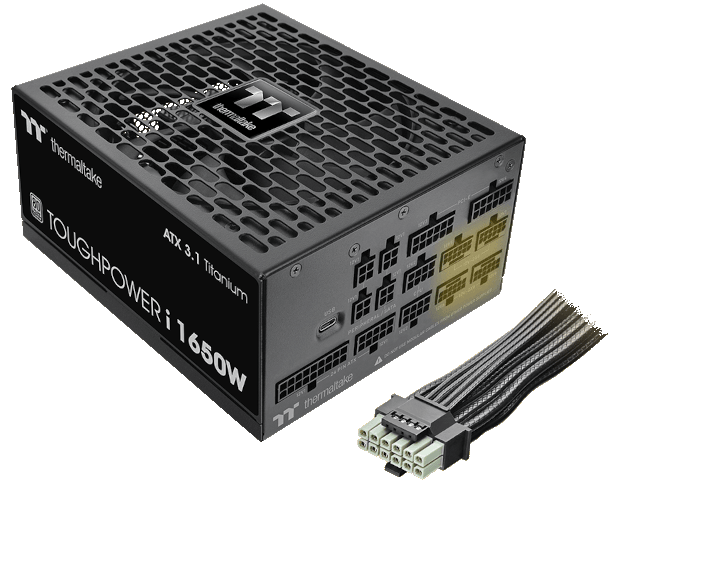

Toughpower i1650W comes with native 12V-2x6 (16 pin) connectors to deliver powerful and stable performance, allowing the PSU to support nextgeneration GPUs.

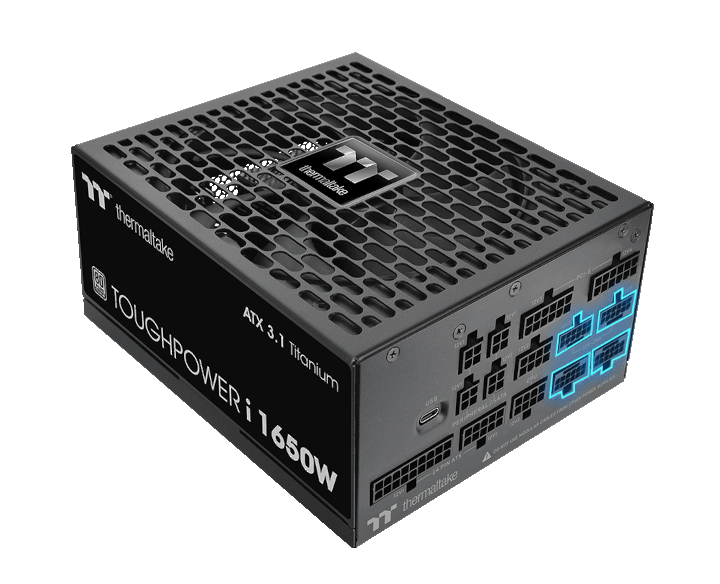

The wattage marked on the 12V-2x6 connector follows Intel's recommended design guideline. With four native 16 pin (12V-2x6) PCIe connectors, the i1650W can support multiple high-wattage PCIe 5.1 graphics cards simultaneously.
Notes:
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufactures before using the PCIe 12V-2x6 cable.

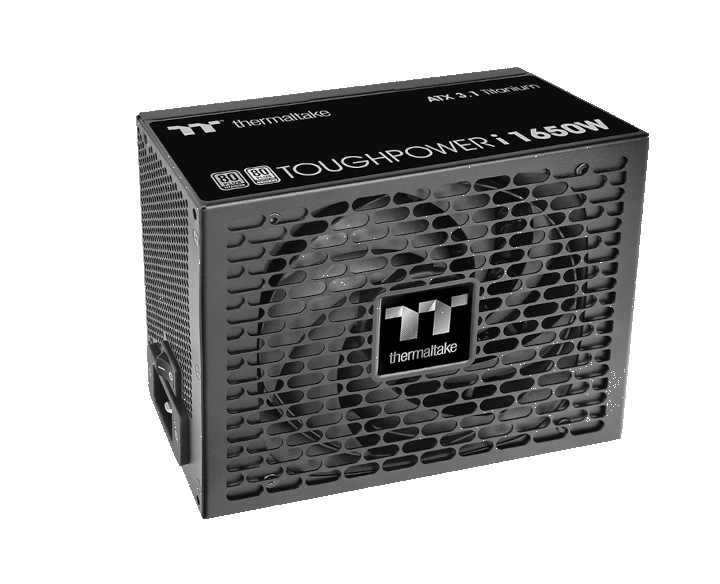

Featuring an ultra-quiet 140mm fan with Smart Zero Fan technology to provide efficient and silent cooling. Fully modular low-profile cables let users to have cleaner builds and optimize airflow.

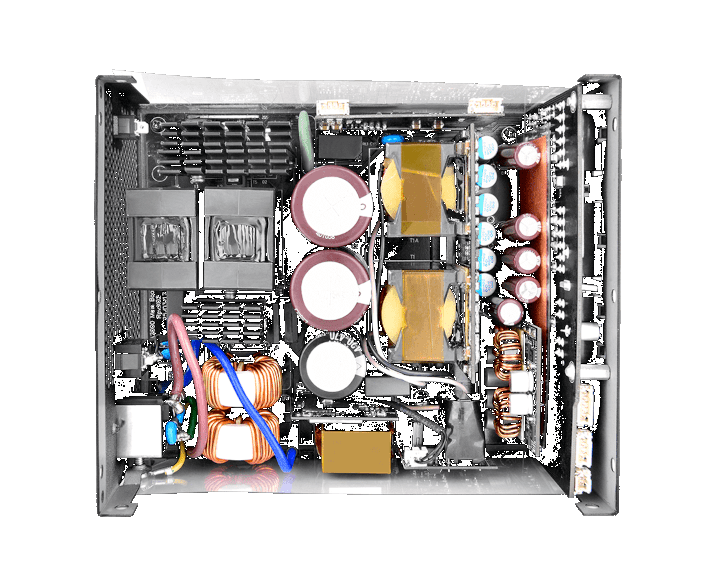

Powerful single +12V rail can deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides extremely stable operation and enhanced voltage regulation.
| AC Input | Input Voltage: 115-220V~ Input Current: 15.0A Max. Frequency: 50 - 60Hz |
||||||||
| DC Output | +3.3V | +5V | +12V | +5VSB | |||||
| Max Output Current | 22.0A | 22.0A | 137.5A | 3.0A | |||||
| Max Output Power | 120W | 1650W | 15W | ||||||
| Total Power | 1650W | ||||||||

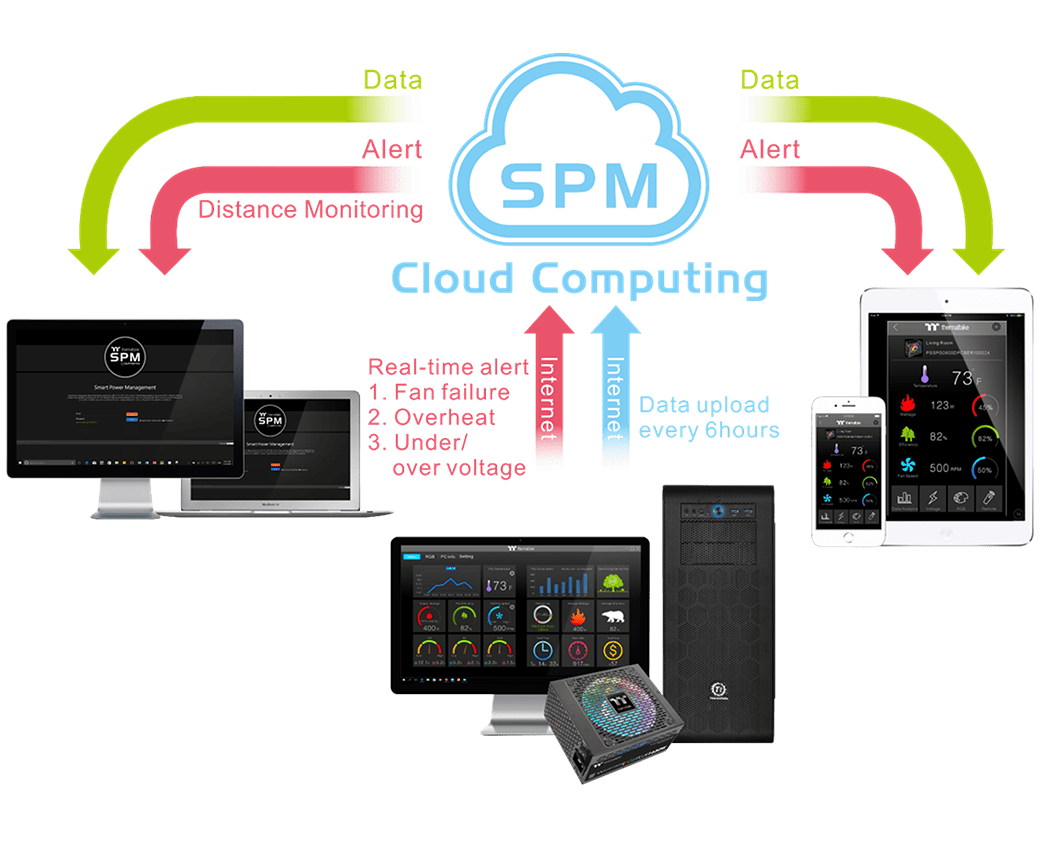

Monitor and analyze real time power data across devices with DPS G software. Upload key information to the cloud and easily share reports through mobile or social platforms.
To protect your hardware, Toughpower i1650W is built with industry grade protections: OCP (Over Current Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection).
OCP
Over Current Protection
OVP
Over Voltage Protection
UVP
Under Voltage Protection
OPP
Over Power Protection
SCP
Short Circuit Protection
OTP
Over Temperature Protection
Offers users more flexibilities for PSU installation. Low-profile black cables make cable management easier, reduces clutter and increases airflow inside the chassis.
| Connector Type | Connector Quantity | Cable Quantity | Cable Length | |
| Main Power (24Pin) | X 1 |
|
X 1 | 600mm |
| ATX 12V (4+4Pin) | X 2 |
|
X 2 | 700mm |
| PCIe (6+2Pin) | X 8 |
|
X 8 | 500mm |
| PCIe (12+4Pin) 600W | X 4 |
|
X 4 | 600mm |
| SATA (5Pin) | X 12 |
|
X 3 | 500mm+150mm+150mm+150mm |
| Peripheral (4Pin) | X 8 |
|
X 2 | 500mm+150mm +150mm+150mm |
80 PLUS Titanium certified, the 1650W model delivers up to 94% energy efficiency, minimizing power loss and heat generation even under full load.
