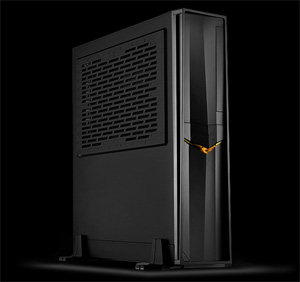

SILVERSTONE Computer Case - RVZ02
After introducing the RAVEN Z series in 2014 to great acclaim with the revolutionary RVZ01, the RAVEN team has created another segment defining design in the RVZ02. With a volume of only 12 liters, this case is not only slimmer but is actually easier to assemble compared to the RVZ01 or any other slim case before it. Similar to many SilverStone small form factor cases, there is plenty of room for a powerful graphics card up to 13 inches in length available while tool-less drive cages have been implemented to make assembly quicker than ever. With clever space utilization and engineering, two major heat sources of a PC are separated via the chassis' main chamber so CPU and graphics card can each have their own airflow path. Despite its diminutive size, the RVZ02 is a remarkably versatile case that can be used anywhere from being a compact desktop workstation (in vertical orientation) to a living console or HTPC (in horizontal orientation), making it truly perfect for just about any slim PC build.
SPECIAL FEATURES
- Highest performance capability in super slim form factor
- Support graphics card up to 13 inches
- Mini-ITX motherboard & SFX PSU compatible
- Independent expansion slot design for easy assembly
- Tool-less drive cage design
- Fits in nearly any environment with horizontal or vertical orientation
Features
- Independent expansion slot design for easy assembly
- Support graphics card up to 13 inches
- Additional 3.5” or 2.5” drive can be installed depending on the length of card installed
- Slim optical drive slot
- Hidden front I/O ports design with USB 3.0
- Signature RAVEN styling touches
- Support SFX and SFX-L power supply
- Dual 2.5” drive slots with tool-less design
- High-performance SilverStone customized riser card
- Support Mini-ITX motherboard
FEATURE PHOTOS
Independent expansion slot design for easy assembly
Acrylic window with oversized vents over CPU area (RVZ02B-W)
Support a dual-slot graphics card up to 13 inches
Hidden front I/O ports design with USB 3.0
Dual 2.5" drive slots with tool-less design
Power button
Signature RAVEN styling touches
Slim optical drive slot
Gallery
Specifications
| Material | Reinforced plastic outer shell, steel body | |
| Motherboard | Mini-ITX | |
| External Drive Bay | 5.25" x 1 (compatible with 3.5" x 1 or 2.5" x 2) | |
| Internal Drive Bay | 3.5" x 2 (one compatible with 2.5"), 2.5" x1 | |
| Drive Bay |
|
|
| Cooling System |
|
|
| Expansion Slot | 2 | |
| Front I/O Port |
|
|
| Power Supply | SFX & SFX-L | |
| Expansion Card | *Compatible with 13” long, width restriction – 4.78” | |
| Limitation of CPU cooler | 58mm | |
| Net Weight | 3.2kg~3.3kg | |
| Dimension | 380mm (W) x 87mm (H) x 370mm (D), 12 liters | |
| Extra | Support two Kensington locks | |
*Expansion card holder needs to be removed when installing expansion/graphics card wider than 4.78 inches. When system is assembled without the holder, vertical orientation of the case is recommended and transporting/shipping should be avoided. For more details, please refer to manual.
