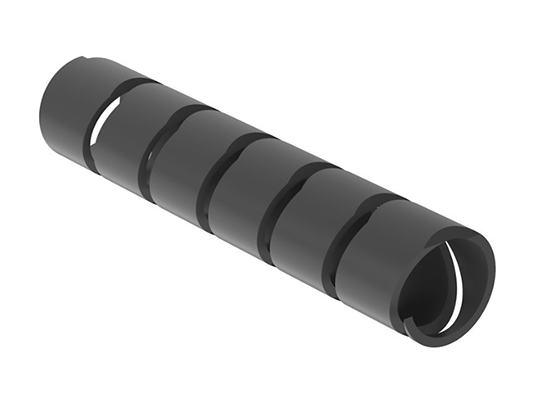

T25F-C0 Spiral Wrap, Black, UV PE, 0.1875" Min Dia., 100' Roll, PK1
The T25F-C0 Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Installation tool supplied. Rated for use up to 122°F (50°C). Weather Resistant Polyethylene. 0.25" (6.4 mm) diameter for 3/16" - 2" (4.8 mm – 50.8 mm) bundle range. Color Black. 100' (30.5 m) long.
| Application | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Product Type | Spiral Wrap |
| Color | Black |
| Environment | Indoor and Outdoor |
| Flammability Rating | UL94-HB |
| Includes | Installation Tool |
| Material | Weather Resistant Polyethylene |
| Resistance Properties | Abrasion Resistance; Weather Resistant |
| Maximum Bundle Diameter (In.) | 2 |
| Maximum Bundle Diameter (mm) | 50.8 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Bundle Diameter (In.) | 0.1875 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Outer Diameter (In.) | 0.25 |
| Outer Diameter (mm) | 6.4 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Standards Met | UL Recognized - E141152; UL94HB |
| Wall Thickness (In.) | 0.04 |
| Wall Thickness (mm) | 1.02 |
| Part Features | Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. Installation tool is supplied and the spiral wrap is reusable. |
