Model: PA20

Interface to PC

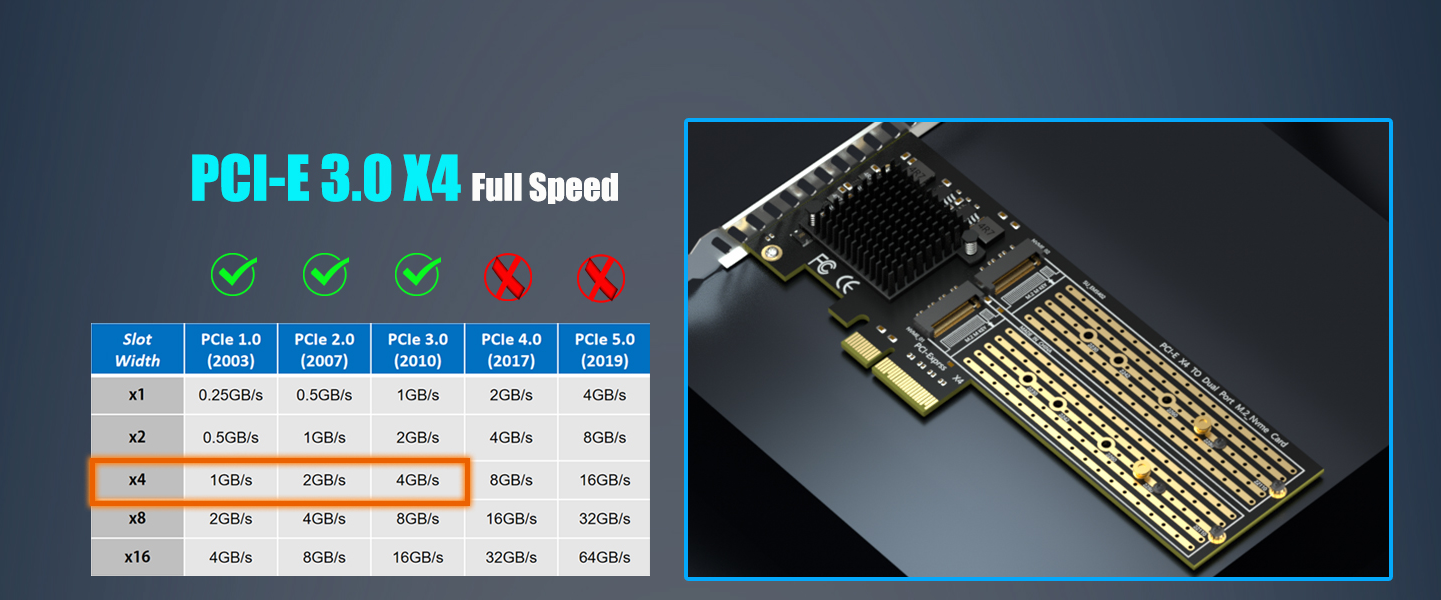

PCI-Express 3.0 X4 (32Gbps speed at max), PCIE X4/X8/X16 Installation

Interface to SSD

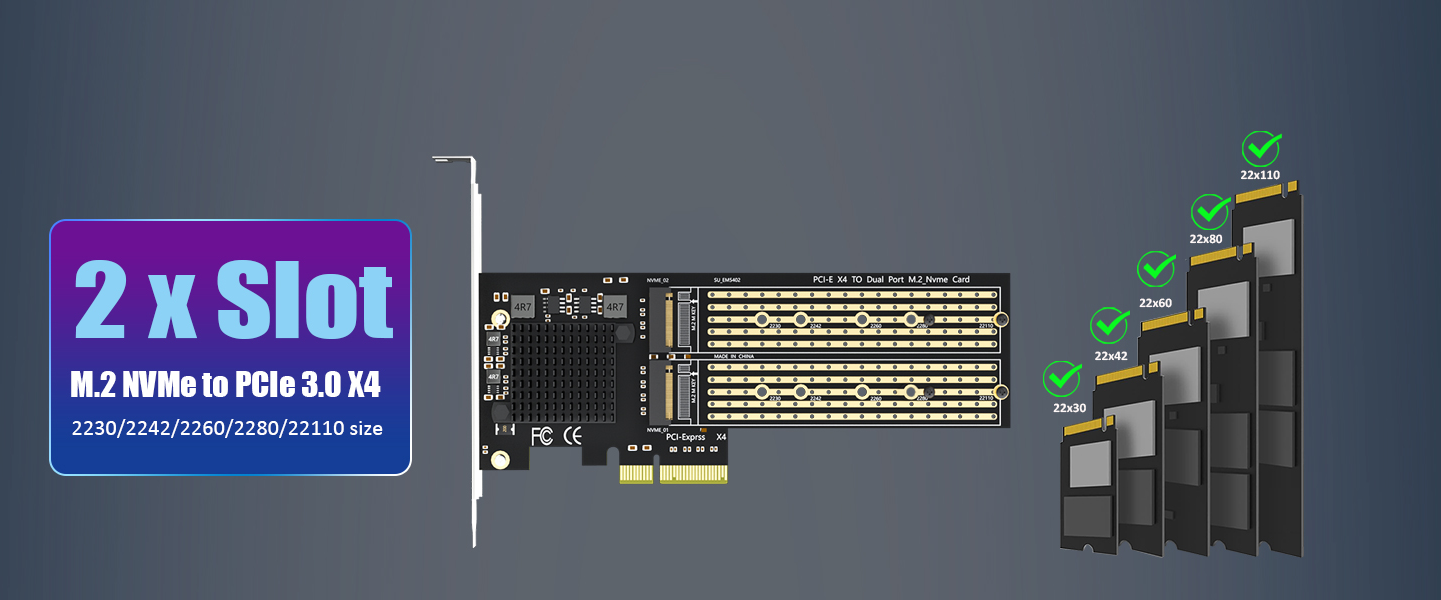

2 x Key M ( Support 2230/2242/2260/2280/22110 form factor)

OS Compatibility

Windows/Linux/mac OS (Note: not support windows 7)

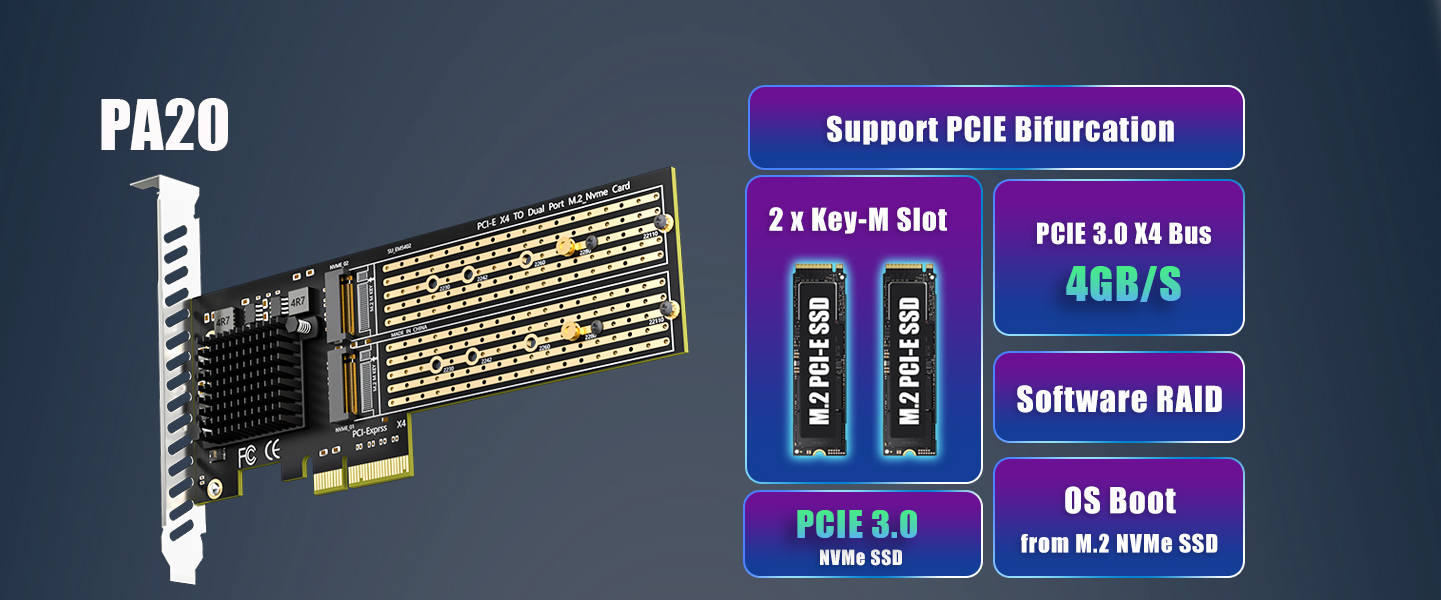

PCIe Bifurcation

Support,it powered by the ASM2812 controller with PCIe bifurcation technology

Hardware Platform

Intel and AMD, and support Mac Pro

RAID Setup

Software RAID setup via Windows Disk Management or Linux mdadm Utility or macOS Disk Utility

Installation

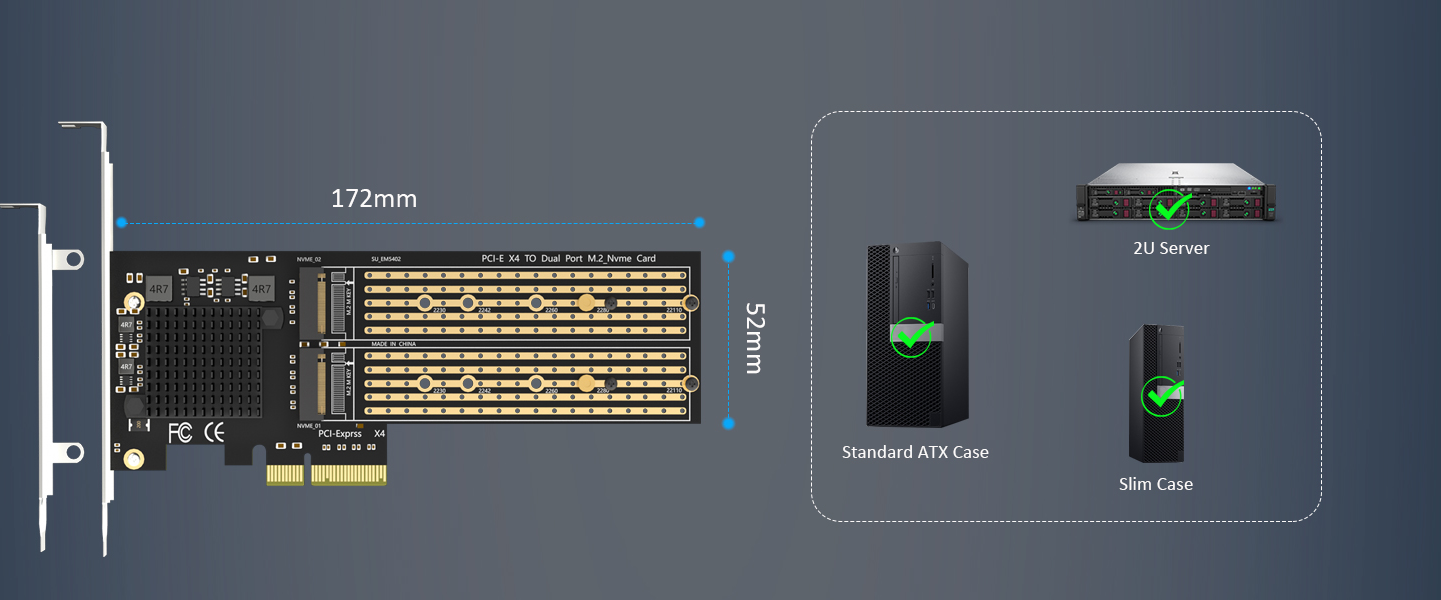

Low-profile and Regular-profile bracket
M.2 NVMe to PCIe 3.0 X4
M.2 NVMe to PCIe 3.0 X4
M.2 NVMe to PCIe 3.0 X4
M.2 NVMe to PCIe 3.0 X4
M.2 NVMe to PCIe 3.0 X4
M.2 NVMe to PCIe 3.0 X4
RAID Setup in Window 10/11
Software RAID for M.2 NVMe SSD
  1. When you locate 2 separate M.2 NVMe SSDs in Windows 10/11 Disk Management
  2. Right-click the disk volume you want to set up as a soft RAID
  3. A pop-up window will appear; click the desired option (Spanned/Striped/Mirrored)
