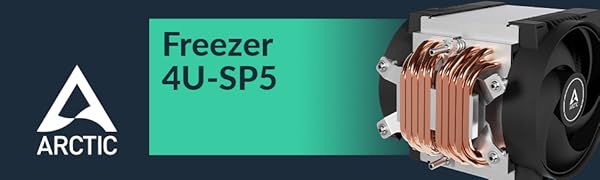

Server Cooler specifically designed for AMD SP5
The Freezer 4U-SP5 is specially designed for Socket SP5 and supported EPYC processors. With a maximum power consumption of only 6.96 W, the Freezer 4U-SP5 cools even the most powerful AMD processors with 128 cores and 360 W TDP extremely efficiently.

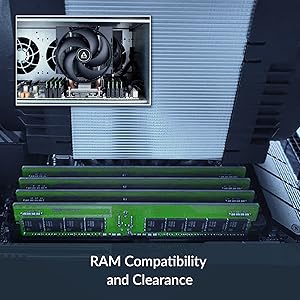

RAM Compatibility and Clearance
The Freezer 4U-SP5 offers a spacious 53 mm of RAM clearance, allowing for the use of memory sticks with moderate heatsinks. This clearance allows efficient airflow and enables compatibility with different RAM variants.
Powerful Fans in Push-Pull Configuration
The installed PWM fans benefit from all the advantages of the award-winning P series. Designed for static pressure, the fans are ideal for the Freezer 4U-SP5's high fin density and provide efficient heat dissipation in push-pull mode, even in power-hungry applications. Especially office workstations benefit from the quiet fans. The dual configuration also allows for inherent redundancy and protects the system from total shutdown caused by heat.

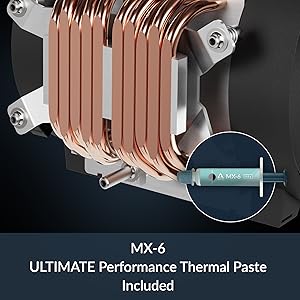

Premium Thermal Paste Included
The Freezer 4U-SP5 comes with MX-6 thermal paste. ARCTIC's Ultimate Performance thermal paste reduces the heat build-up between the heat spreader of the CPU and the cooler. The thermal paste is neither conductive nor capacitive and therefore absolutely safe to use.

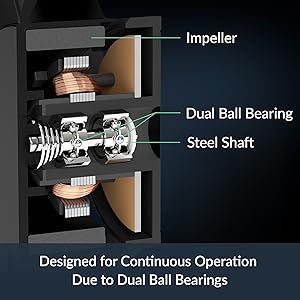

Designed for continuous operation
Both fans of the Freezer 4U-SP5 are equipped with dual ball bearings, which allows for 24/7 continuous operation without the slightest compromise in performance. This type of bearing is much more resistant to contamination and wear caused by high temperatures than conventional sleeve bearings or Fluid-Dynamic bearings and is therefore the perfect choice if you want to ensure fault-free continuous operation.
Technical Specifications
 ARCTIC Freezer 4U-SP5 |  ARCTIC Freezer 4U-M for AMD: SP6, sTR5, SP3, TR4, sTRX4, SWRX8 and Intel: LGA... | ARCTIC Freezer 4U-M (Rev. 2) | ARCTIC Freezer 4U-M for Ampere: Altra, Altra Max; AMD: SP6, sTR5, SP3, TR4, s... | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — no data | — | — |
| Bearing | Dual Ball Bearing | Dual Ball Bearing | Dual Ball Bearing | Dual Ball Bearing |
| AMD | SP5 | SP6, sTR5, SP3, TR4, sTRX4, sWRX8 | SP6, sTR5, SP3, TR4, sTRX4, sWRX8 | SP6, sTR5, SP3, TR4, sTRX4, sWRX8 |
| Intel | / | LGA4189, LGA4677 | LGA4189, LGA4677 | LGA4189, LGA4677 |
| Ampere | / | / | LGA4926* *Mounting Kit necessary | LGA4926 |
| Fan | 2x 120 mm PWM Fans | 2x 120 mm PWM Fans | 2x 120 mm PWM Fans | 2x 120 mm PWM Fans |
| Fan Speed | 300–3300 rpm, PWM-controlled | 400–2300 rpm, PWM-controlled | 400–2300 rpm, PWM-controlled | 400–2300 rpm, PWM-controlled |
| Dimensions | 124 (L) x 147 (W) x 145 (H) mm | 124 (L) x 156 (W) x 145 (H) mm | 124 (L) x 156 (W) x 145 (H) mm | 124 (L) x 156 (W) x 145 (H) mm |
| Weight | 1512 g | 1275 g | 1275 g | 1275 g |
Server Cooler specifically designed for AMD SP5
The Freezer 4U-SP5 is specially designed for Socket SP5 and supported EPYC processors. With a maximum power consumption of only 6.96 W, the Freezer 4U-SP5 cools even the most powerful AMD processors with 128 cores and 360 W TDP extremely efficiently.
RAM Compatibility and Clearance
The Freezer 4U-SP5 offers a spacious 53 mm of RAM clearance, allowing for the use of memory sticks with moderate heatsinks. This clearance allows efficient airflow and enables compatibility with different RAM variants.
Powerful Fans in Push-Pull Configuration
The installed PWM fans benefit from all the advantages of the award-winning P series. Designed for static pressure, the fans are ideal for the Freezer 4U-SP5's high fin density and provide efficient heat dissipation in push-pull mode, even in power-hungry applications. Especially office workstations benefit from the quiet fans. The dual configuration also allows for inherent redundancy and protects the system from total shutdown caused by heat.
Premium Thermal Paste Included
The Freezer 4U-SP5 comes with MX-6 thermal paste. ARCTIC's Ultimate Performance thermal paste reduces the heat build-up between the heat spreader of the CPU and the cooler. The thermal paste is neither conductive nor capacitive and therefore absolutely safe to use.
Designed for continuous operation
Both fans of the Freezer 4U-SP5 are equipped with dual ball bearings, which allows for 24/7 continuous operation without the slightest compromise in performance. This type of bearing is much more resistant to contamination and wear caused by high temperatures than conventional sleeve bearings or Fluid-Dynamic bearings and is therefore the perfect choice if you want to ensure fault-free continuous operation.
Technical Specifications
| General data | Compatibility: AMD: SP5; Thermal Compound: ARCTIC MX-6 0.8 g Syringe incl. Server Rack Unit: 4HE & up; Operating ambient temperature: 0-40 °C; Promise: 6 years |
| Heat sink specifications | Heatpipes: Direct Touch, Ø 6 mm x10; Number of fins: 62; Fin material: Aluminum |
| Fan specifications | Fan: 2x 120 mm PWM fans; Speed: 300-3000 rpm, PWM-controlled; Connection: 4-pin socket; Cable length: 200 mm; Bearing: Double ball bearing; Noise level: 45.3 dBA; Airflow: 81.04 cfm | 137.69 m³/h; Static pressure: 4.35 mmH2O; Current | voltage: 0.29 A | 12 V DC; Starting voltage: 3.1 V DC |
| Size & weight | Dimensions: 124 (L) x 147 (W) x 145 (H) mm; Weight: 1,512 g |
