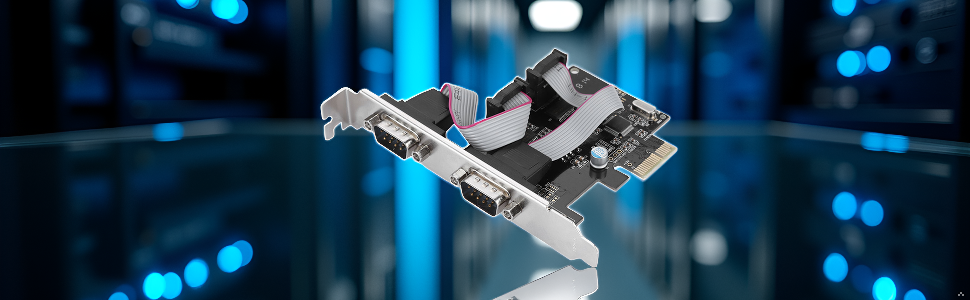

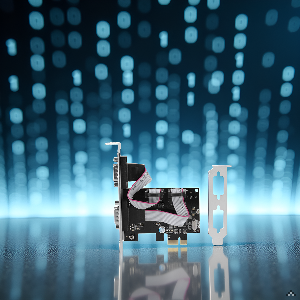

PCI-E to RS232 2 port Serial Port Converter Expansion Card
System Requirements:
At least one available PCI-Express x1 slot on the computer.
Supported Operating Systems:
Drivers support for Windows 2000/XP/Server 2003/XP 64 bit/for Vista/7/8, for Linux, for DOS, for iOS
Features
- PCI-Express rate 2.5Gb/s full duplex channel.
- Plug and play.
- Serial interface RS-232.
- Compatible with standard 16c550 UART and 256-byte transmit and receive FIFO.
- High-speed data transfer rate of up to 250k / sec.
- Support RS-232 hardware flow control.
Specification
- Material: PCB
- Chip: WCH382
- Data bit length: 5, 6, 7, 8
- Check method: None, even, odd, space, mark
- Stop bit length: 1,2
- System Requirements:
- There is at least one PCI - Express x1 slot available on your PC.
- Supported operating systems:
- The driver supports for Windows2000/xp/server 2003/xp 64-bit/for Vista/7/8/for Linux/for Dos/for iOS.
- Size: Approx. 12 * 8.5 * 2 cm / 4.72 * 3.34 * 0.78 in
- Weight: 49g
Package list:
- 1 * Converter Card
- 1 * Baffle
