Specifications

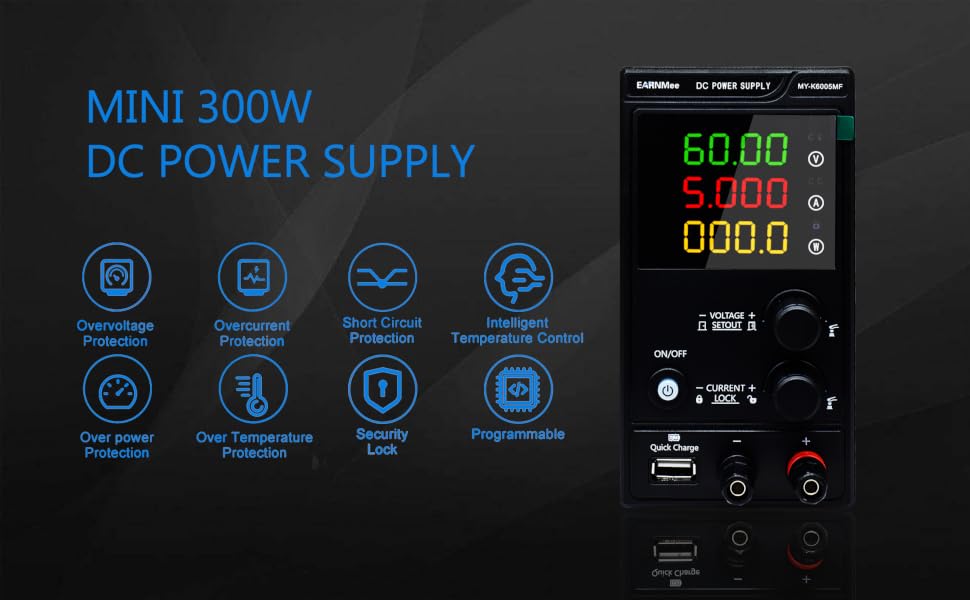

• Model: MY-K6005MF
• Input Voltage: 110V/60Hz
• Power plug: U.S. power plug
• Output power: 300W
• Output voltage: 0-60V
• Output current: 0-5A
• Load stability: =0.5%
• Ripple and Noise: =1%(Valid values)
• Packing weight: about 2kg
• Net weight: about 1.5kg
• Product size: 15*8*23cm / 5.9*3.15*9.06in

Screen

• 2.52 inch screen display (colour font)
• Voltage display accuracy: =±(0.2%+3d)
• Current display accuracy: =±(0.5%+3d)
• Display resolution: voltage 0.01V, current 0.001A

Operating environment

• Input power: AC 110V±10% , 60Hz
• Operating temperature: 5?~40?; Relative humidity: <80%RH
• Storage temperature: -20?~80?; Relative humidity: <80%RH

Feature

• Small size, light weight, high power density.
• Constant voltage, constant current, automatic switching.
• Voltage, current, power four-digit LED display, high precision.

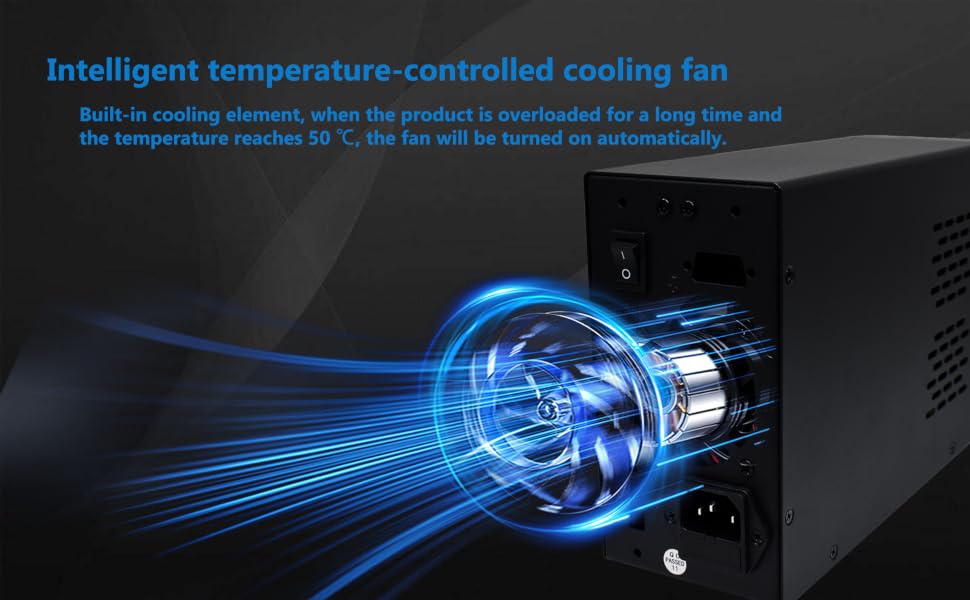

• Temperature control fan cooling, low noise, long service life.
• Powerful protection function, over-voltage, over-current, over-power, overheating, short-circuit fivefold protection.
• Independent output control button, can independently control the output on or off, effectively avoid output direct damage to the load instrument.

Application scope

1. aerospace testing
2. photovoltaic and energy storage systems
3. new energy vehicles
4. data centres
5. Industrial motors
6. Power Semiconductor Modules
7. Automatic Test Systems (ATE)
8. Lithium Fuel Cells
9. Electronic equipment aging
10. Precision plating, sputtering and surface treatment
