Versatile Tape Laser Measure Robust Build High Accuracy Long Reach

Describe

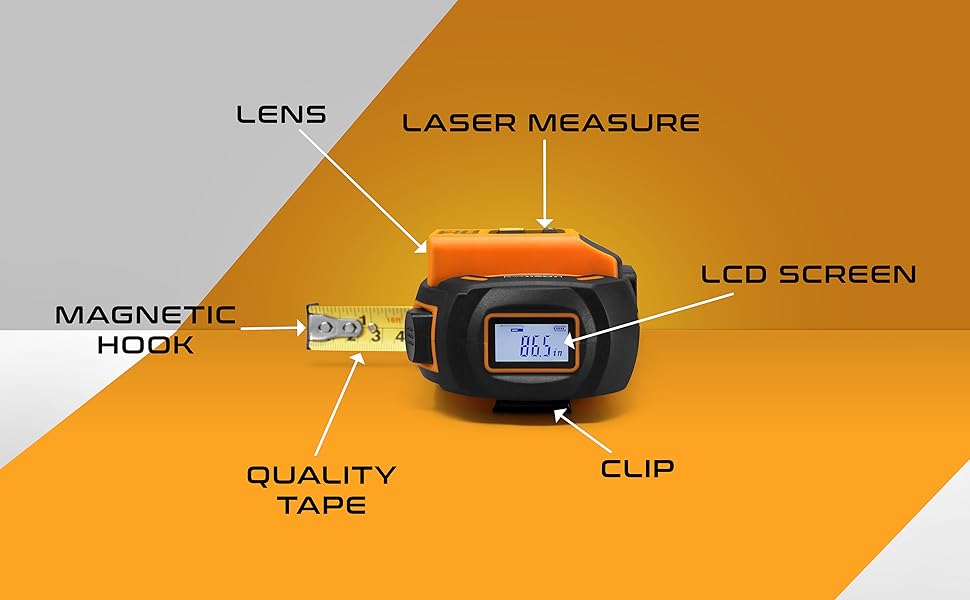

A combination of useful utility features

  • Rugged structure fit for tough conditions on a worksite.
  • AAA battery powered without the need to wait for a battery recharge, replace AAA batteries under a minute.
  • Magnetic hook on the tape blade head, easy attachment to metal objects.
  • Quality tape resistant to wear.
  • Well designed lens providing consistency and accuracy.
  • Longest reach in the class laser measure, compact and powerful.

Save space on your tool belt

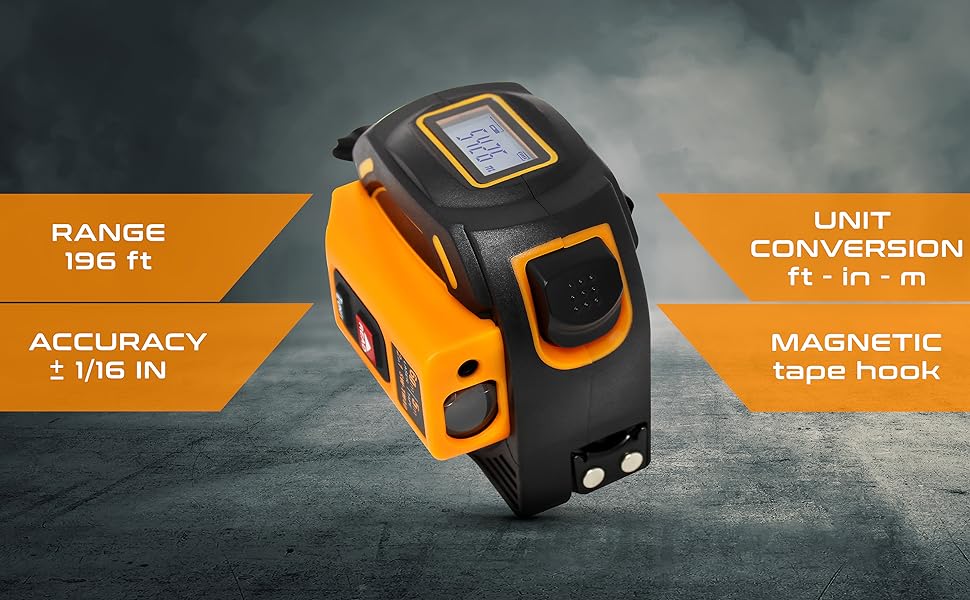

Laser Tape

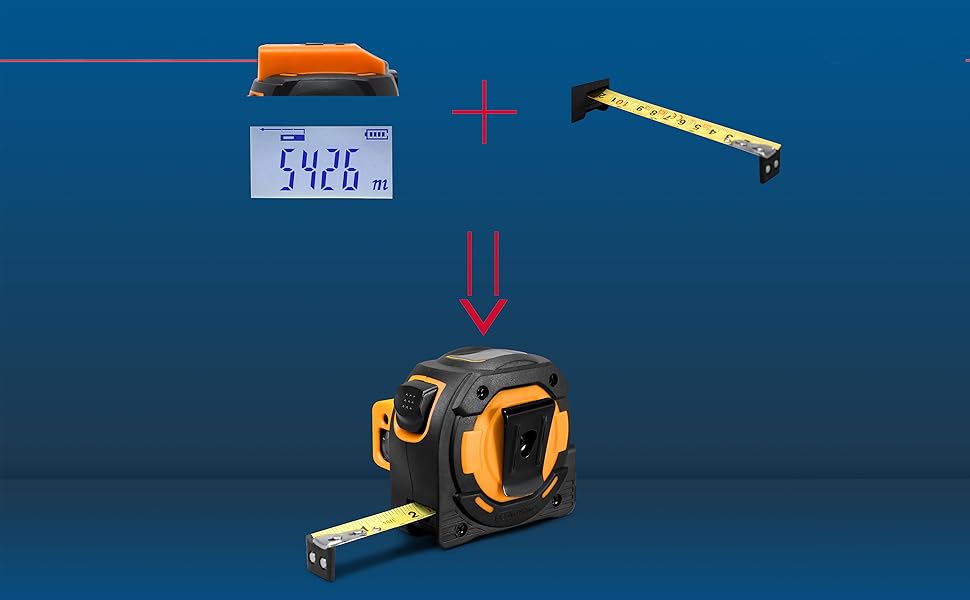

Combining two excellent tools into one

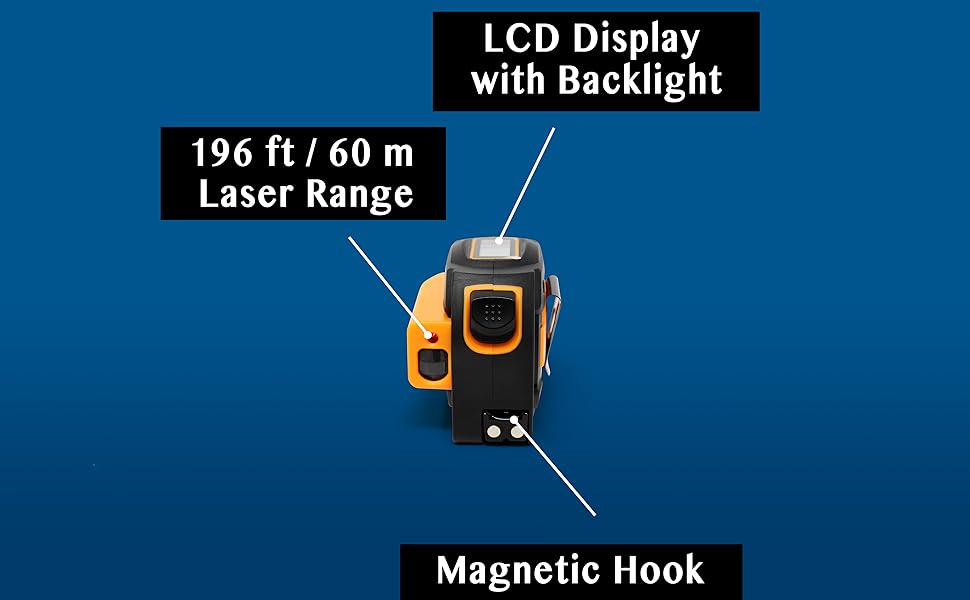

Tape Laser

Extend reach with a 196 feet laser measure that is 65 feet longer than comparable models

  • A digital readout screen visible under various environments, the backlight illuminates readings in reduced visibility conditions.
  • Readings quickly convert from US units to metric units, between meter, inch, feet inch, feet, decimal, and fraction.

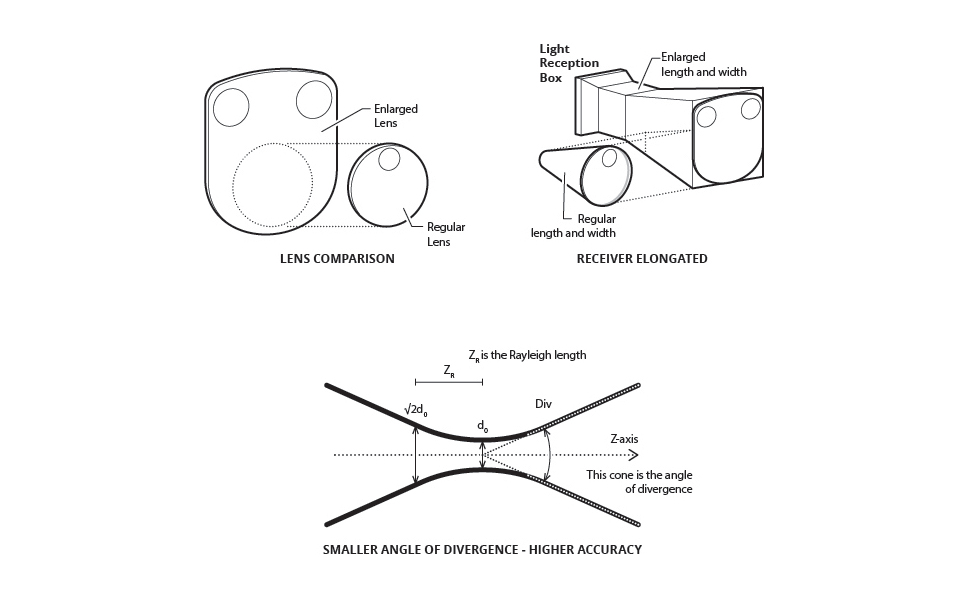

Improved laser structure with a larger lens and a larger reception space

Length

Longer Rayleigh length improves measurement accuracy

  • The lens size is much larger than comparable models, similar to a dedicated full-size laser measure. The increased lens size increases the quality of light entering the reception space, which improves the measurement quality in an environment with substantial interference such as sunlight, external reflections, or weather conditions.
  • Enlarged reception space provides a smaller divergence angle in the laser measurement, increasing quality and consistency.
  • Rayleigh length of a laser beam is the distance along the propagation direction of a beam from the waist to the place where the cross section's area is doubled. This number shows how focused the laser beam is to the depth of focus. Longer Rayleigh length decreases the angle of divergence, which improves the quality.

USer

Provide accurate measurements in various situations

Laser Tape
Laser accuracy ± 1/16 in
Tape accuracy ± 1/32 in
Measurement mode single distance / continuous real-time distance
Power AAA Battery x 2
Self-Calibration ± .35 in
Unit Inch, feet, meter, centimeter, millimeter, fraction, decimal
Storage Humidity 20%-80%
Tape Width .74 in
Tape Material Hadfield steel
Tape Coating Nylon
