Maximum Performance, Redefined
Instead of just turning the blades over, the fans are fully designed for true reverse flow. Its design ensures both high static pressure and strong airflow.

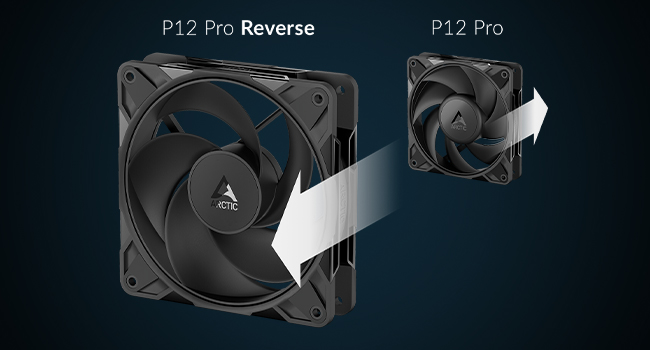

Reverse Airflow
ARCTIC's reverse fans are specifically designed to draw air from the back and are particularly suitable when traditional fans would spoil the appearance.
SOTA-Microcontroller
Reduces motor noise and automatically compensates for speed drops when resistance is increased. Integrated protection mechanisms limit inrush current peaks and reliably protect against damage caused by reverse polarity.
PST - Proven cable management
Thanks to the additional PWM socket, several fans can be connected in series and controlled together via just one connection.
Automated Balancing
The precisely calculated balancing mass is injected precisely in one plane. This effectively reduces vibrations and ensures particularly quiet and long-lasting performance.
Minimum gap dimensions for Maximum efficiency
Lower manufacturing tolerances and clearances allow the fan to operate more effectively against resistance, maximizing static pressure and airflow efficiency.
Technical Data
P12 Pro Reverse Series in Comparison
 P12 Pro Reverse - Black |  P12 Pro Reverse Black |  P12 Pro Reverse White |  P12 Pro | P12 Pro PST | P12 Pro PST CO |  P12 Pro A-RGB | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Fan Speed | 500–3000 rpm (PWM-controlled) | 500–3000 rpm (PWM-controlled) | 500–3000 rpm (PWM-controlled) | 600–3000 rpm (PWM-controlled) | 600–3000 rpm (PWM-controlled) | 600–3000 rpm (PWM-controlled) | 600–3000 rpm (PWM-controlled) |
Air Flow | 73 cfm | 124 m³/h | 73 cfm | 124 m³/h | 73 cfm | 124 m³/h | 77 cfm | 131 m³/h | 77 cfm | 131 m³/h | 77 cfm | 131 m³/h | 77 cfm | 131 m³/h |
Bearing Type | Hydrodynamic Bearing | Hydrodynamic Bearing | Hydrodynamic Bearing | Hydrodynamic Bearing | Hydrodynamic Bearing | Dual-Ball Bearing | Hydrodynamic Bearing |
Static Pressure | 4.5 mmH2O | 4.5 mmH2O | 4.5 mmH2O | 6.9 mmH2O | 6.9 mmH2O | 6.9 mmH2O | 6.9 mmH2O |
Cable Length | 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable |
Connector Type | 4-pin Connector | 4-pin Connector | 4-pin Connector | 4-pin Connector | 4-pin Connector | 4-pin Connector | 4-pin Connector |
A-RGB LEDs | / | 12x A-RGB Gen2 LEDs | 12x A-RGB Gen2 LEDs | / | / | / | 12x A-RGB Gen2 LEDs |
RGB Connector | / | 3-pin A-RGB Connector | 3-pin A-RGB Connector | / | / | / | 3-pin A-RGB Connector |
Dimensions (L x W x H) | 120 x 120 x 27 mm | 120 x 120 x 27 mm | 120 x 120 x 27 mm | 120 x 120 x 27 mm | 120 x 120 x 27 mm | 120 x 120 x 27 mm | 120 x 120 x 27 mm |
Weight | 167 g | 172 g | 172 g | 183 g | 185 g | 185 g | 185 g |
Maximum Performance, Redefined
Instead of just turning the blades over, the fans are fully designed for true reverse flow. Its design ensures both high static pressure and strong airflow.
Reverse Airflow
ARCTIC's reverse fans are specifically designed to draw air from the back and are particularly suitable when traditional fans would spoil the appearance.
Funnel-Shaped Air Intake
Optimizes the intake, focuses the air flow and reduces flow losses. This noticeably reduces air resistance while improving efficiency.
Aerodynamic Struts
The teardrop-shaped struts direct the air flow evenly. This significantly reduces turbulence and minimizes noise, ensuring smoother and quieter operation.

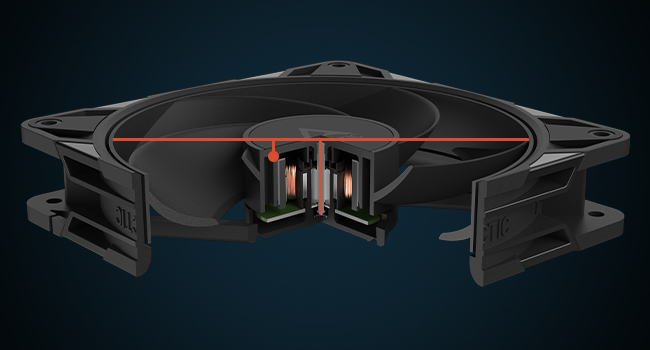

SOTA-Microcontroller
Reduces motor noise and automatically compensates for speed drops when resistance is increased. Integrated protection mechanisms limit inrush current peaks and reliably protect against damage caused by reverse polarity.

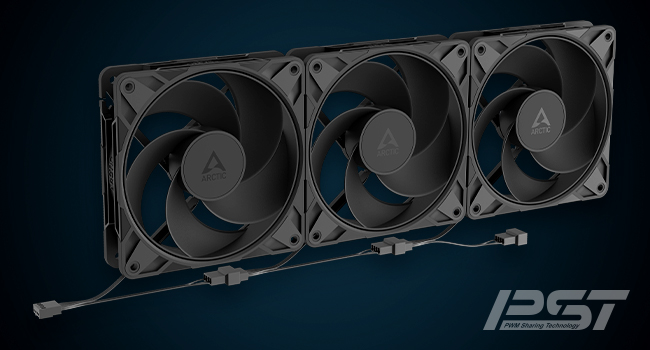

PST - Proven cable management
Thanks to the additional PWM socket, several fans can be connected in series and controlled together via just one connection.
Automated Balancing
The precisely calculated balancing mass is injected precisely in one plane. This effectively reduces vibrations and ensures particularly quiet and long-lasting performance.

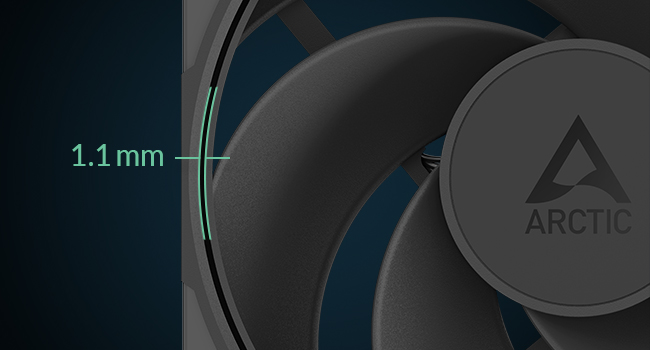

Minimum gap dimensions for Maximum efficiency
Lower manufacturing tolerances and clearances allow the fan to operate more effectively against resistance, maximizing static pressure and airflow efficiency.

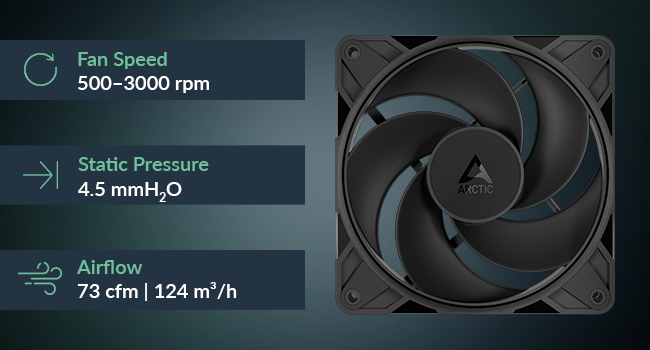

Technical Data
| Speed | ??500-3000rpm (PWM controlled), 0rpm under 5% PWM |
|---|---|
| Airflow | 73 cfm | 124 m³/h |
| Static Pressure | 4.5 mmH2O |
| Fan Bearing | Hydrodynamic plain bearing |
| Typical Voltage | 12V DC |
| Current Strength | 0.4 A |
| Cable Length | 400 mm + 80 mm daisy chain cable |
| Connection | 4-pin fan plug + 4-pin socket |
| Operating Ambient Temperature | 0-40°C |
| Dimensions | 120 (L) x 120 (W) x 27 (H) mm |
| Weight | 172g |
P12 Pro Reverse Series in Comparison
P12 Pro Reverse - Black | P12 Pro Reverse Black | P12 Pro Reverse White | P12 Pro | P12 Pro PST | P12 Pro PST CO | P12 Pro A-RGB |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| Fan Speed | ||||||
| 500–3000 rpm (PWM-controlled) | 500–3000 rpm (PWM-controlled) | 500–3000 rpm (PWM-controlled) | 600–3000 rpm (PWM-controlled) | 600–3000 rpm (PWM-controlled) | 600–3000 rpm (PWM-controlled) | 600–3000 rpm (PWM-controlled) |
| Air Flow | ||||||
| 73 cfm | 124 m³/h | 73 cfm | 124 m³/h | 73 cfm | 124 m³/h | 77 cfm | 131 m³/h | 77 cfm | 131 m³/h | 77 cfm | 131 m³/h | 77 cfm | 131 m³/h |
| Bearing Type | ||||||
| Hydrodynamic Bearing | Hydrodynamic Bearing | Hydrodynamic Bearing | Hydrodynamic Bearing | Hydrodynamic Bearing | Dual-Ball Bearing | Hydrodynamic Bearing |
| Static Pressure | ||||||
| 4.5 mmH2O | 4.5 mmH2O | 4.5 mmH2O | 6.9 mmH2O | 6.9 mmH2O | 6.9 mmH2O | 6.9 mmH2O |
| Cable Length | ||||||
| 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable |
| Connector Type | ||||||
| 4-pin Connector | 4-pin Connector | 4-pin Connector | 4-pin Connector | 4-pin Connector | 4-pin Connector | 4-pin Connector |
| A-RGB LEDs | ||||||
| / | 12x A-RGB Gen2 LEDs | 12x A-RGB Gen2 LEDs | / | / | / | 12x A-RGB Gen2 LEDs |
| RGB Connector | ||||||
| / | 3-pin A-RGB Connector | 3-pin A-RGB Connector | / | / | / | 3-pin A-RGB Connector |
| Dimensions (L x W x H) | ||||||
| 120 x 120 x 27 mm | 120 x 120 x 27 mm | 120 x 120 x 27 mm | 120 x 120 x 27 mm | 120 x 120 x 27 mm | 120 x 120 x 27 mm | 120 x 120 x 27 mm |
| Weight | ||||||
| 167 g | 172 g | 172 g | 183 g | 185 g | 185 g | 185 g |
