MICRO-POWER VALIDATION. YOUR PERSONAL DESKTOP NODE.
The LuckyMiner LV07 is an ultra-compact asic miner designed exclusively for desktop crypto enthusiasts. We engineered this device to bypass the massive power and cooling needs of traditional rigs. Just plug it in, connect to your local network, and operate your own highly efficient bitcoin miner hardware directly from your workspace. This is decentralized validation made accessible.
- 1.0 TH/s Hashrate: Powered by dedicated silicon, this compact asic miner delivers a stable 1.0 TH/s (+/- 10%) cryptographic hashrate. Validate networks independently with pro-grade density.
- 25W Micro-Power: Experience incredible efficiency. This validation hardware draws a microscopic 25W (+/- 10%) at the wall. It includes a compliant 100-240V AC to 12V/5A adapter to keep household electrical costs near zero.
- Quiet 38dBA Operation: Designed for homes and offices. The active thermal extraction framework strictly caps continuous noise at just 38 dBA at 25 C. Seamlessly deploy this solo miner without disruptive industrial fans.
- Autonomous WiFi: The integrated 2.4GHz wireless infrastructure completely eliminates the need for Ethernet cables. Enable rapid, out-of-the-box connectivity directly from your personal workspace.
|
Technical Parameter |
Specification Detail |
|---|---|
|
Product Model |
Lucky Miner LV07 (Micro-Power SHA256 Node) |
|
Cryptographic Algorithm |
SHA256 (Native support for BTC, BCH, BSV, and associated networks) |
|
Nominal Hashrate |
1.0 TH/s ±10% |
|
Power Consumption |
25W ±10% (@ 25°C) |
|
Input Power Architecture |
100~240V AC to 12V/5A External Industrial Adapter (60W requirement) |
|
Acoustic Profile |
Active Thermal Extraction (38 dBA @ 25°C) |
|
Network Provisioning |
2.4GHz Standalone Wireless Protocol Node |
|
Barebone Dimensions |
109mm x 99mm x 45mm |
|
Single Unit Net Weight |
0.37 kg (370 g) |
|
Single Unit Gross Weight |
0.95 kg (950 g) |

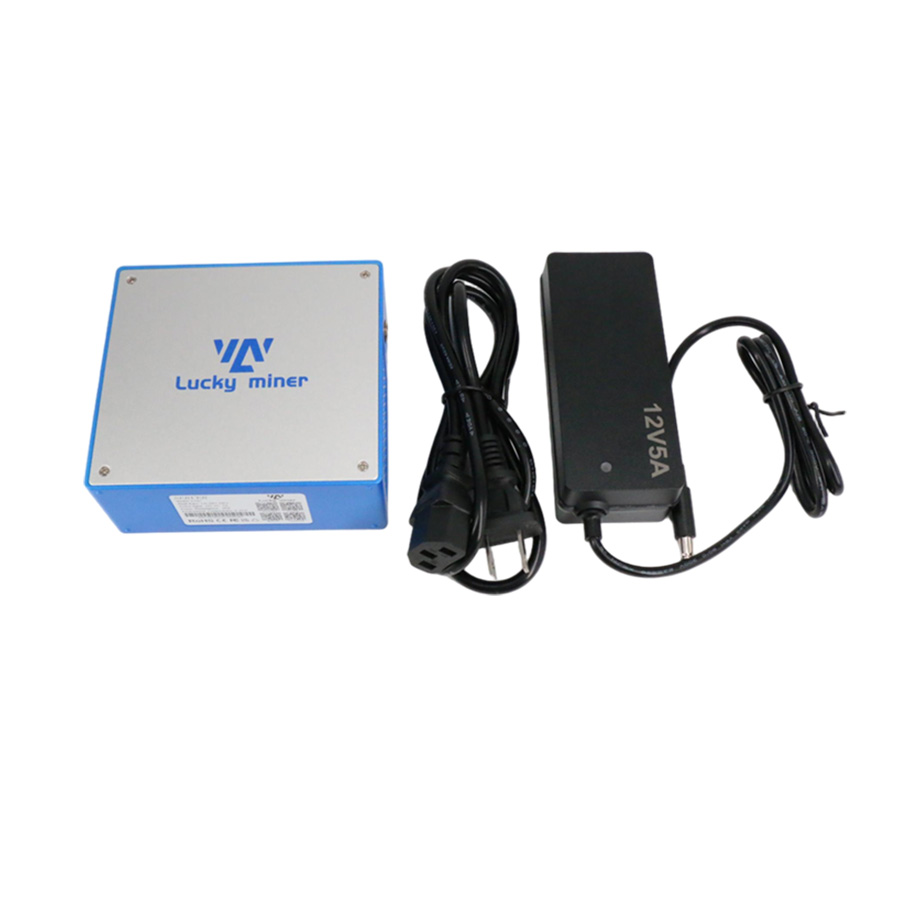

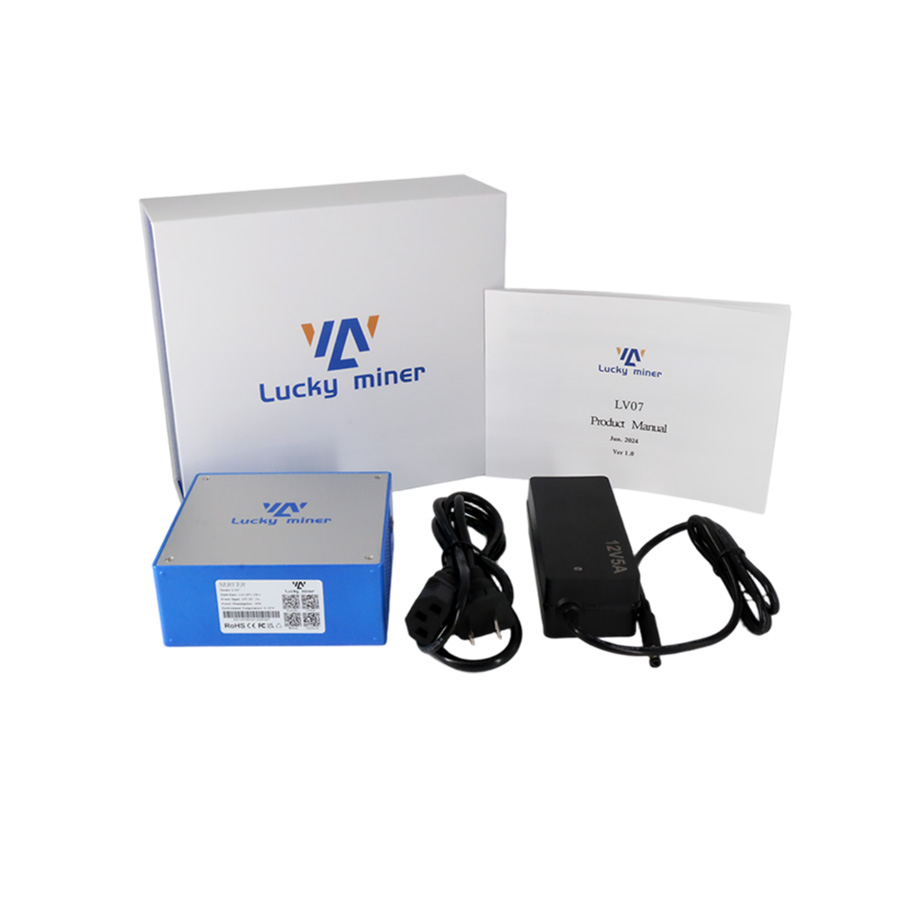

- 1x Luckyminer LV07 Compute Node
- 1x AC line (US Standard Plug)
Notice on Power Specifications: Every standalone hardware node is shipped by default with a standard US AC power cable and plug configuration. For international power requirements (EU/UK/AU), please specify your regional voltage and plug specifications in the order comments prior to checkout to ensure seamless factory provisioning.
Lucky Miner LV07 Bitcoin Miner Showcase
Product-Specific FAQ
A:
- Ensure you are connecting to a 2.4G WiFi network, as 5G (802.11ac) networks are not supported.
- Verify that your WiFi SSID (network name) and password contain only standard English letters and numbers.
- Special characters in the WiFi credentials are strictly prohibited and will prevent the connection.
A:
- This usually indicates that the main control IC has not started properly.
- When the device is powered on, press the reset button 1 to 3 times to reset the main control chip.
- If the screen and fan completely fail to work, measure the power adapter to ensure it outputs 12V +/- 3%.
- If the voltage is incorrect, or if the adapter light keeps flashing, you need to replace the adapter.
A:
- Check your mining pool configuration carefully, as different port numbers correspond to different access difficulties.
- You must ensure the device's computing power is below the mining pool's access difficulty.
- For example, an experience value of 500G can access a mining pool with a difficulty under 1000.
- Also, ensure you are using the correct mainnet wallet address (e.g., BTC addresses generally start with 1, 3, or bc1) or the registered username required by specific pools.
A:
- This can be caused by WiFi congestion, mining pool resolution failure, or high-temperature protection.
- Ensure your environment temperature remains under 30 C and the equipment is placed in a well-ventilated area.
- Blocking the air inlet and outlet is strictly prohibited.
- If temperature is not the issue, try changing to a stable WiFi hotspot or a different well-known mining pool.
| Products | ||||
|---|---|---|---|---|
| Crypto Algorithm | SHA-256 | Scrypt | SHA-256 | SHA-256 |
| Compatible Coins | BTC, BCH, DGB... | DOGE, LTC, BELLS... | BTC, BCH, DGB... | BTC, BCH, DGB... |
| Typical Hashrate | 3.0 TH/s (+/- 10%) | 120.0 MH/s (+/- 10%) | 1.7 TH/s (+/- 5%) | 8.0 TH/s (+/- 5%) |
| Power Consumption | 50W (+/- 10%) | 30W (+/- 10%) | 25W (+/- 10%) | 170W (+/- 10%) |
| Target Deployment | Entry-Level Node | Scrypt Master | Ultra-Compact Node | Advanced Performance |
