Operating Systems Supported: Windows 2000/ XP(32/64bit)/ Server 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, and Linux
Features: Innovative Bracket Design Adapts and Secures the Existing Low Profile Bracket of the PCI Card
Compliant with PCI-to-PCIe Bridge Architecture spec Revision 1.2
Compliant with PCI BUS Power Management Rev 1.1
Compliant with PCI Express to PCI/PCI-X Bridge spec 1.0
PCI Express base spec 1.0a compliant
Compliant with PCI spec Revision 2.3
No Drivers or software required
Features: Compliant with PCI BUS PM Interface spec Revision 1.1
Compliant with PCI Express to PCI/PCI-X Bridge spec 1.0
Compliant with PCI Local BUS spec Revision 2.2
Compliant with PCI-to-PCI Bridge Architecture spec Revision 1.2
Innovative Bracket Design Adapts and Secures the Existing Low Profile Bracket of the PCI Card
LP4 Power Connector Included for Universal Voltage PCI Cards (3.3V/5V)
PCI Bus Power Management interface 1.1
PCI Express base spec 1.0a compliant
Compatibility: Compatible Models:
Visit www.asus.com for latest compatible model lists.
Maximum numbers of M.2 SSD support will vary, depending on different CPU specs and PCIe bifurcation settings in different ASUS motherboards. Please see the FAQ link for further information:
https://www.asus.com/support/FAQ/ 1037507
Specifications: Interface:
PCIe 5.0 x16 interface, support data transfer rates up to 512 Gbps.
External Connectors:
4 x M.2 slots (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0)*
* Supports PCIe M.2 storage devices only.
LED & Switch:
1 x M.2 FAN Power Switch
4 x M.2 access LEDs
Thermal Solution :
Active fan with heatsink, support fan control from MB chassis fan header
Dimensions:
29(L)*12.2(W) *1.5(H)cm
Compatible Models:
Visit www.asus.com for ...
Operating Systems Supported: Windows CE 5.0, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012, 2016, 2019
Linux 2.4.x to 4.11.x LTS Versions only

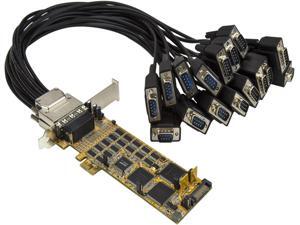

Specifications: Bus Type: PCI Express
Card Type: Low Profile (SP bracket incl.)
Chipset ID: ASMEDIA - ASM1083, SYSTEMBASE - SB16C1058PCI
Interface: Serial
Port Style: Dongle (Included)
Ports: 8
Data Bits: 5, 6, 7, 8
FIFO: 256 Bytes
Flow Control: RTS/CTS, XON/XOFF
Max Baud Rate: 921.6 Kbps
Parity: None, Even, Odd, 1, 0
Serial Protocol: RS-232
Stop Bits: 1, 1.5, 2
Dimensions: 0.87" x 2.36" x 5.70"
Weight: 0.26 lbs.
Package Contents: 1 x PCIe Serial Card
2 x DB44 to 4-Port SB9 Breakout Cables
2 x Full Profile Bra...
External Ports: 2 x Thunderbolt 3 USB-C (24-pin) Female
1 x DisplayPort (20 pin) Female
Internal Ports: 1 x PCI Express x16 Female
Data Transfer Rate: Up to 40 Gbps (Thunderbolt 3)
Operating Systems Supported: Windows 10 (32-bit or 64-bit), 8 / 8.1 (32-bit or 64-bit), 7 (32-bit or 64-bit)
macOS 10.12 (Sierra)
Specifications: Fan(s): 1 x 92 mm fan
Air Flow Rate : 14.06 CFM
Noise Level: 24.55 dB
Fan Bearing Type: Sleeve Bearing
Chipset ID: Intel - Alpine Ridge DSL6540
LED Indicators: 1 x Power(Blue)
Center Tip Polarity: Positive
Input Current : 2A
Input Voltage : 100 ~ 240 AC
Output Current: 5.417A
Output Voltage: 12 DC
Power Consumption (In Watts): 65W
Power Source: AC Adapter Included
Note:
This expansion chassis does not provide full power delivery but will...
Operating Systems Supported: Windows 7 (32/64-bit)
Vista (32/64-bit)
Windows XP (32/64-bit)
Windows 2000 (32/64-bit)
Server 2003-2008 (32/64-bit)

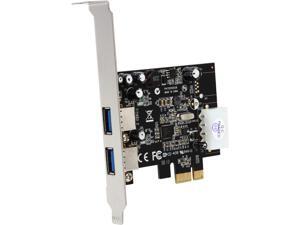

Specifications: Real Connector: Molex (IDE 4-pin) Power Connector
Based on VLI VL80x (VL800-Q8) USB 3.0 Host Controller IC
Compliant with Intel's Extensible Host Controller Interface (xHCI) Specification Revision 0.96
Compliant with PCI Express Base Specification 2.0
PCI-e Specification:
- PCI-Express 2.0 1-Lane (x1) Interface with Data Transfer Rate up to 5Gbps
- Backwards Compatible to PCI-Express 1.0a with Data Transfer Rate up to 2.5Gbps
- Internal HDD Power Connector for Supplying Extra +5V Power to the USB Ports
- Internal HDD Power Con...
Package Contents: 2S1P PCI Serial Parallel Combo Card with 16C550 UART
1 x Full-Profile Bracket
2 x Low-Profile Brackets (for Serial Ports)
1 x Low-Profile Bracket (for Parallel Port)
1 x Quick-Start Guide
Data Transfer Rate: FireWire 800 IEEE-1394b - 800 Mbit/s
Operating Systems Supported: Windows 2000, XP, Vista, 7, 8, 8.1, 10, Windows Server 2003, 2008 R2, 2012, 2016, Mac OS 10.6 to 10.12, Linux 3.5.x to 4.4.x LTS Versions Only
Features: Two 9-pin FireWire 800 ports, each with transfer rates up to 800Mbps
One 6-pin FireWire 400 port, each with transfer rates up to 400Mbps
Includes full/standard profile installation bracket
Built with a native PCI Express chipset, no bridge chip
Internal power connector for high-powered FireWire devices
Compliant with IEEE 1394b and backwards compatible with IEEE 1394a - 2000 as well as 1394-1995 standards
Plug-and-Play and hot-swap compatible...
Operating Systems Supported: Microsoft Certified WHQL Drivers for:
Windows 7 32/64-bit
Vista 32/64-bit
Windows XP 32/64-bit
Server 2008 R2 64-bit
Specifications: Based on Renesas USB 3.0 Host Controller IC
Compliant with Intel's Extensible Host Controller Interface (xHCI) Specification Revision 1.0
Supports Standard and Low-profile Desktop Computer
PCI-Express Interface:
- PCI-Express 2.0 1-Lane (x1) Interface
- Compliant with PCI Express Base Specification 2.0
- Supports PCI-Bus Power Management Interface Specification Revision 1.2
USB Interface:
- Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
- USB 3.0 Super-S...
Operating Systems Supported: Microsoft Windows XP, Vista, 7, & 8 (32/64bit)
Features: Blazing Fast Transfer Speeds of up to 5Gbps
10x Faster than USB 2.0
Four USB 3.0 Ports to Support Multiple Devices
Two External & Two Internal USB 3.0 (20-pin connector) Ports
Supports Hot-Swap: Plug & Play Devices Without Rebooting
Backwards Compatible with USB 1.1 and 2.0 Devices
