Features: • Hardened IP30 rated Gigabit 4PPoE Injector
• PoE (15.4W), PoE+ (30W), or 4PPoE (90W) power , Power supply sold separately (model TI-S12048)
• Network a PoE device located up to 100m (328 ft.) away, Includes DIN-rail mount and wall mount
• Extreme -40 to 75 °C (-40 to 167 °F) operating temperature
Specifications: Interface:
Wi-Fi
Micro USB (Support USB 2.0)
Color: White
Capacities: 32GB
Network Standard: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Operating Frequency: 2.4 GHz / 5 GHz
Ports:
1 x SD Card Reader
1 x Micro USB
Button: Reset Button, Power Button, Channel Switch
LED Indicator:
1 x Power
1 x Wi-Fi
System Requirements:
Windows 10 86x64
Windows 8 86x64
Windows 7 86x64
Mac OS X 10.6 or higher
iOS7 or higher
AndroidTM 4.0 or higher
Kindle Fire HD and HDX
Specifications: Input Voltage: 110 V AC, 220 V AC
Output Voltage: 48 V DC
Output Power: 15.40 W Per Port
Output Ports: 1 x RJ-45
Form Factor: Wall Mountable
Frequency: 47 Hz to 63 Hz
Input Current: 500 mA
Specifications: Data rate: 10/100/1000 Mbps
Installation and management
Power Selector: 15 W or 30 W
Automatically detects PoE and High PoE-enabled devices and
supplies inline power
Local LED management display
Input power
AC Input Voltage: 100 to 240 V AC
AC Frequency: 50-60 Hz
Max. output power: 55 V DC (max. 60 W)
Connectors
Shielded RJ45, EIA 568A and 568B
Power connector C13
Network cables: Shielded category 5 (or higher)
Specifications: Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at
IEEE 802.3bt
Device Interface
1 x Gigabit PoE++ in port
1 x Gigabit PoE+ out port
1 x Gigabit 24/48V DC passive PoE out port
LED indicators
Wall mount
IP67 housing
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit: 2000Mbps (full duplex)
Performance
RAM buffer: 1Mb
MAC Address Table: 2K entries
Jumbo Frame: 9KB
DIP Switch
Adjust 24/48V DC passive voltage (default 48V DC)

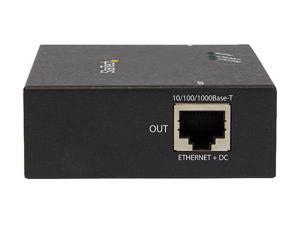

Features: • DEVICE INTERFACE: 1 x Gigabit Port (Data); 1 x Gigabit PoE+ Port (Data + Power)
• POE+: The Gigabit PoE+ Injector converts a non-PoE gigabit port to a PoE+ gigabit port and supplies a PoE device with PoE
(15.4W), or PoE+ (30W) powerbulletsINSTALLATION FLEXIBILITY: Wall-mount design of the PoE injector and a sturdy metal
enclosure accommodates most installations scenarios
• POE DISTANCE: The gigabit PoE injector provides a PoE+ network connection up to 100m (328 ft.)
• RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your
needs during normal business hours. We take pride in being there for our customers.
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant injectors, you can plan and install networkin...
