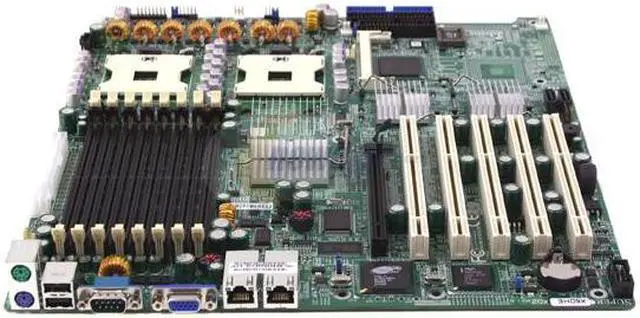

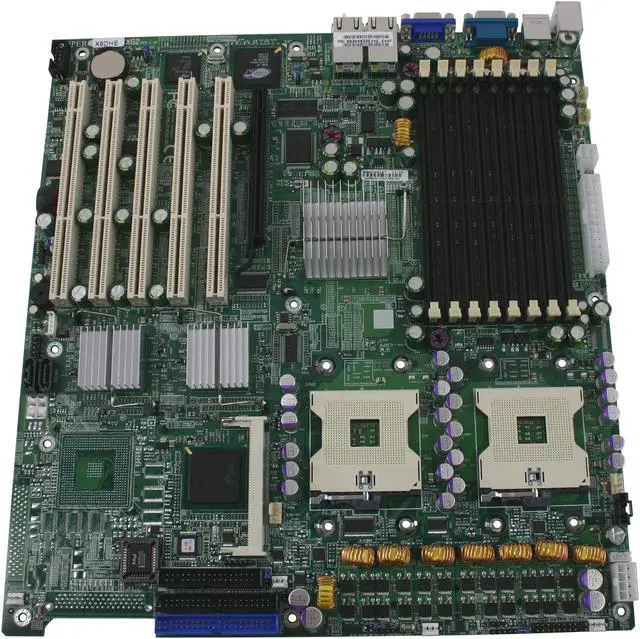

    SUPERMICRO X6DHE-XG2 Extended ATX Server Motherboard Dual mPGA604 Intel E7520 DDR2 400

    Be the first to review this product...
    • Dual mPGA604
    • Intel E7520
    • 8 x 240Pin
    +
    +
    Specs
    Reviews

    Learn more about the Supermicro X6DHE-XG2

    Model
    Brand SUPERMICRO
    Model X6DHE-XG2
    Supported CPU
    CPU Socket Type Dual mPGA604
    CPU Type Dual Intel Xeon
    System Bus 800 MHz
    Chipsets
    North Bridge Intel E7520
    South Bridge Intel ICH5R
    Memory
    Number of DDR2 Slots 8 x 240Pin
    DDR2 Standard DDR2 400
    Maximum Memory Supported 16GB
    Channel Supported Dual Channel
    ECC Supported Yes
    Registered Yes
    Expansion Slots
    PCI Express x8 1 (x8) on a (x16) slot
    PCI-X Slots (64-bit 133MHz) 3
    PCI-X Slots (64-bit 100MHz) 2
    Storage Devices
    PATA 2 x ATA 100 4 Dev. Max
    SATA 2 x SATA 1.5Gb/s
    SATA RAID 0/1 JBOD
    Onboard Video
    Onboard Video Chipset ATI RAGE XL
    Onboard LAN
    LAN Chipset Intel 82546GB
    LAN Speed 10/100/1000Mbps
    Second LAN Chipset Intel 82546GB
    Second LAN Speed 10/100/1000Mbps
    Max LAN Speed 2 x 1Gbps
    Rear Panel Ports
    PS/2 2
    COM 1
    Video Ports 1
    USB 1.1/2.0 2 x USB 2.0
    Onboard Ports
    Onboard USB 3x USB internal headers
    Dimensions
    Form Factor Extended ATX
    Dimensions (W x L) 12.0" x 13.1"

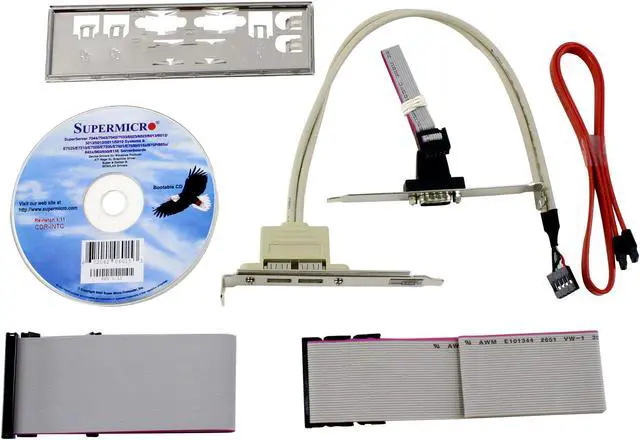

    Packaging
    Package Contents X6DHE-XG2
    Software Disk
    Rear I/O Panel Shield
    IDE Cable
    FDD Cable
    SATA Cable
    COM Port Bracket
    USB Bracket
    Additional Information
    First Listed on Newegg August 12, 2019
