Specifications: Safety
IEC 60950-1, EN 60950-1, CB Certificate/Report, UL/CSA 60950-1
EMC
CC / ICES-003 Emission (USA/Canada)
CRISP 22 Emission (International)
EN61000-4-2 Electrostatic Discharge
EN61000-4-3 Radiated RFI Immunity
EN61000-4-4 Electrical Fast Transients level 4
EN61000-4-5 Electrical Surge Level
EN61000-4-6 RF Conducted
EN61000-4-8 Power Frequency Magnetic Fields
EN61000-4-11 Voltage Dips and Interruptions
EN61000-4-8 Power Frequency Magnetic Fields
EN61000-4-11 Voltage Dips and Interruptions
Specifications: Interface:
"Data" Input Ports: 16 x RJ45
"Data + Power" Output Ports: 16 x RJ45
Management Port: 1 x RJ45; 10/100/1000BASE-T, auto-negotiation, auto-MDI/MDIX
Data Rate: 10/100/1000Mbps
LED
System: SYS PWR x 1 (Green), PoE Failure x 1 (Red), Fan Failure x 2 (Red)
Management port x 2: 1000 (Green), 10/100(Orange)
Per PoE Port: Ultra 60W PoE-in-use x 1 (Green), 802.3at/af PoE-in-use x1 (Orange), PoE Power Usage LED x4 (Green)
Power Requirements: 100 - 240V AC, 50/60 Hz, 8A
Power Consumption: 800 watts (max.) / 2729BTU
Ventilation: Fan x 3
Enclosure: Metal
PoE Standard:
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
4-pair Ultra PoE
PoE Power Supply Type: End-span / Mid-span / UPoE (Ultra PoE)
Power Pin Assignment:
Pair 1 end-span: 1/2(-), 3/6(+)
Pair 2 mid-span: 4/5(+), 7/8(-)
UPoE: 1/2(-), 3/6(+),...
Specifications: Interfaces:
PoE IN:1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at PoE "Data + DC power" in auto MDI/MDI-X, auto-negotiation RJ45 connector
PoE OUT: 2 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE "Data + DC power" out auto MDI/MDI-X, auto-negotiation RJ45 connector
Power over Ethernet
PoE Standard:
"PoE In" Port: IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD class 4 PD
Per "PoE Out" Port:
IEEE 802.3at Power over Ethernet Plus end-span PSE
IEEE 802.3af Power over Ethernet end-span PSE
PoE Power Supply Type: End-span (Type A)
PoE Power:
"PoE In" Port: 52 - 56V DC, max. 30.8 watts
Per "PoE Out" Port: 44 - 55V DC, max. 25 watts
Power Pin Assignment:
"PoE In" Port: 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
Per "PoE Out" Port: 1/2 (+), 3/6 (-)
Data Rate: 10/100/1000Mbps
MAC Address Table: 2K
Data Bu...
Specifications: Interface:
"Data" Input Port: 1 x RJ-45 STP
"PoE (Data+Power)" Output Port: 1 x RJ-45 STP
Input power terminal block: 1
LED Indicator:
System: Power 1, Power 2, Fault (Green)
PoE Port: PoE in Use x 1 (Green)
Network Cable:
10Base-T: UTP Cat. 3, 4, 5, up to 100m (328 ft.)
100Base-TX: UTP Cat. 3, 4, 5, up to 100m (328 ft.)
1000Base-T: UTP Cat. 5, 5e, 6 up to 100m (328 ft.)
EIA/TIA- 568 100-ohm STP (100m)
Data Rate: 10/100/1000Mbps
Dimension: 1.26" x 5.31" x 3.46"
Weight: 1.05 lbs.
Unit Input Voltage: 24 - 48V DC; 24V AC
Power Consumption: 30 watts max.
Number of device can be powered: 1
Installation: DIN rail kit and wall mount ear
Alarm:
Provides one relay output for power failure,
Alarm relay current carry ability: 3A at DC 30V
Enclosure: IP30 slim type metal case
Power over Ethernet
PoE Standard: IEEE 802.3at High ...
Specifications: Interface: LAN:
1 x RJ-45 STP, "Data" Input Port
POE: 1 x RJ-45 STP, "Data + Power" Output Port
AC Connector: 1 x AC Input power socket, IEC-320 C6
Network Cable:
Ultra PoE (60W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328 ft.)
802.3af / at PoE(15W / 30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328 ft.)
LED Indicator:
System: Power x 1 (Green)
PoE Port: Active, PoE ready / In Use x 1 (Green)
Data Rate: 10/100/1000 Mbps
Unit Output Voltage: DC 50-57V, 1.2A
Power Requirements: 100-240V AC @ 50/60 Hz, 1.5A max.
Power Consumption: 60 watts max.
PoE Standard:
Ultra PoE over 4-pairs UTP,
High Power over Ethernet End-Span / Mid-Span PSE
PoE Power Supply Type: End-Span + Mid-Span
Power Pin Assignment:
Pair 1 End-Span: 1/2 (+), 3/6 (-)
Pair 2 Mid-Span: 4/5 (+), 7/8 (-)
PoE Power Output:
DC 50-57V/60-w...
Specifications: Ethernet Interface:
Copper: 10/100BASE-TX RJ45, auto-negotiation / auto-MDI / MDI-X
Power over Ethernet Standard: IEEE 802.3at/af PoE PD (Powered Device)
PoE Input: Supports both mid-span and end-span PSE
Input Range: 48~56V DC
Data Rate: 100/100 Mbps
Cabling: Cat5e or above
Maximum Distance: 100m
Maximum Frame Size: 1522 bytes
LED Indicators:
4 x LEDs
PWR
LRP LNK
PoE IN
LNK / ACTESD Protection: 4 KV DC
EFT Protection: 2 KV
Enclosure Metal: case
Installation: Wall mount or DIN rail with optional kit
Power Requirements:
RJ45 PoE Input: 802.3at/af 48~56V DC
DC Input: 48~56V DC
Standards Compliance:
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3af Power over Ethernet (802.3at Type 1)
IEEE 802.3at Power over Ethernet (802.3at Type 2)
Specifications: Ethernet Interface:
Copper:
10/100BASE-TX RJ45
auto-negotiation / auto-MDI / MDI-X
Power over Ethernet Standard: IEEE 802.3at/af PoE PSE (Power Source Equipment)
PoE Output: 56V DC, 600mA max.
PoE Budget: Up to 25 watts
PoE Mode: End-span, RJ45 Pin 1/2 (+), 3/6 (-)
Data Rate: 100/100 Mbps
Cabling: Cat5e or above
Maximum Distance: 100 meters
Maximum Frame Size: 1522 bytes
LED Indicators:
4 x LEDs
PWR
LRP LNK
PoE-in-use
LNK / ACT
ESD Protection: 4KV DC
Enclosure: Metal case
Installation: Wall mount or DIN rail with optional kit
Power Requirements: BNC Power over Coaxial Input: 44~56V DC
Standards Compliance:
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3af Power over Ethernet (802.3at Type 1)
IEEE 802.3at Power over Ethernet Plus(802.3at Type 2)
Specifications: Hardware Version: 2
Interface:
"Data" Input Ports: 4 x RJ-45
"Data+Power" Output Ports: 4 x RJ-45
Data Rate: 10/100/1000 Mbps
LED:
System: Power x 1 (Green)
Per PoE Port: PoE ready / in-use x 4 (Green)
Network Cable:
10Base-T: 4-Pair UTP Cat. 5 up to 100m (328 ft.)
100Base-TX: 4-Pair UTP Cat. 5 up to 100m (328 ft.)
1000Base-T: 4-Pair UTP Cat. 5e, 6, up to 100m (328 ft.)
EIA/TIA- 568 100-ohm STP (100m, 328 ft.)
Power Requirements: DC 52V~56V
PoE Power Supply Type: Mid-Span
PoE Power Output: Per Port DC 52V 30.8 watts / 15.4 watts
Power Pin Assignment: 4/5(+), 7/8(-)
PoE Power Budget: 120 watts
Number of 802.3af PD Class 0, 1, 2, 3 can be powered: 4
Number of 802.3at PD Class 1, 2, 3 can be powered: 4
Number of 802.3at PD Class 0, 4 can be powered: 4
Standards Compliance:
IEEE 802.3 10Bas...

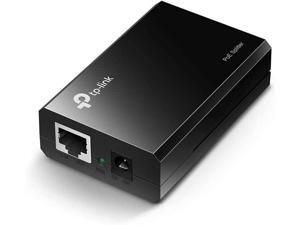

Specifications: Interface:
PoE (Power + Data) Input Port: 1 x RJ-45 STP
Data” Output Port: 1 x RJ-45 STP
DC Out Plug Connector: 1
LED Indicator System: PoE In x 1 (Green)
Network Cable:
10Base-T: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328 ft.)
100Base-TX: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328 ft.)
1000Base-T: 2-Pair UTP Cat. 5, 5e, 6 up to 100m (328 ft.)
EIA / TIA-568 100-ohm STP (100m)
Data Rate: 10/100/1000 Mbps (varies on Ethernet device attached)
DIP Switch: 12V DC / 24V DC output voltage
Power Input: 802.3at PoE+ 52 ~ 56V DC
PoE Standard: IEEE 802.3at High Power over Ethernet
Number of clients device can be powered: 1
Power Output:
12V DC, 2A max
24V DC, 1A max
Standards Compliance:
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3at...
Specifications: Power Method: 100-240V AC / 50-60 Hz, Universal Input
Power Supply:
54V, 150W AC/DC
Installed in PSU 1
Maximum Power Output:
150W (1 PSU module)
300W (2 PSU modules @ 150 W each)
LEDs:
Power: System on / off
Ethernet: Management port link
PSU: PSU1+PSU2, PSU1 / PSU2
Networking Interface: 1 x RJ-45 Fast Ethernet port
Rack Mount: Yes, 1U high
ESD/EMP Protection: Air +/- 24 kV; Contact +/- 24 kV
