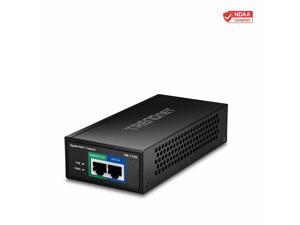

Specifications: Compatible OEM: Industry Standard
Media Type: Copper
Data Rate: 1Gbs
Power Supply: 120V AC Power Cable
Media Conversion Type: Copper to Copper
Reach: 100m
Type: POE Injector
POE: POE++
Unmanaged
IEEE Standard 802.3bt
Additional Information Multi-Rate
Connector1 Number of Ports: 1
Connector2 Number of Ports: 1
Connector Types: RJ-45 & RJ-45
POE Watts: 60W
Specifications: Video Channel: 1 channel bi-direction
Signal Mode: NTSC / PAL / SECAM
Video Connector: BNC
Video Bandwidth: 60 MHz
Video Input / Output Voltage: 1.0 Vpp / typical peak-to-peak value
Video Input / Output Impedance: 75 ohm / unbalanced interface
Supported Video Type:
1080p: AHD / TVI / CVI
480p: CVBS
Video Digital Bit Width: 8/10 bit
Differential Gain (DG): < 1.3% (typical value)
Differential Phase (DP): < 1.3 degree (typical value)
SNR Weighted: > 67 dB (typical value)
Data Channel: 1 channel
Physical Protocol: RS485
Operation Mode: Simplex
Data Connector: 3-pin terminal block with screw clamps
Data Rate: DC-115.2 Kbps
Bit Error Rate (BER): < 10ns
LED Indicators:
Power
Video
Link (fiber optic)
Power Requirement: 5V DC, 2A
Power Consumption: 4.8 watts (maximum)
Mechanical: Metal
Installation: Wall-mountable, DIN-rail (with optional...
Specifications: Networking Interface:
PoE In (802.3af): 1 x Gigabit RJ45 Port
PoE Out (24V Passive): 1 x Gigabit RJ45 Port
Operating Temperature: 0 to 70 degree C (32 to 158 degree F)
Power Input: 48V, 802.3af
Max. Power Output: 24V, 0.5A
Power Method:
24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
Specifications: Interfaces/Ports:
4 x RJ-45
1 x RJ-45
Data Transfer Rate: 230 Kbps Serial
Management:
Telnet
SNMP
Digi Port Authority-Remote
HTTP for easy browser configuration
Status Indicators: Link / Power
Input Voltage:
100 V AC to 240 V AC
9 V DC to 30 V DC
Input Current:
400 mA 12 V DC
500 mA 9 V DC to30 V DC

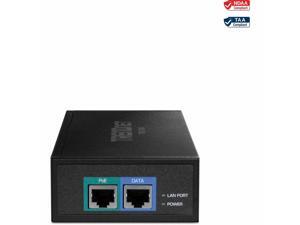

Specifications: Interface
LAN: 1 x RJ45 STP, "Data" Input Port
PoE: 1 x RJ45 STP, "Data + Power" Output Port
AC Connector: 1 x AC input power socket, IEC-320 C6
Network Cable
Ultra PoE (60W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328 ft.)
802.3af/at PoE (15W/30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328 ft.)
LED Indicator
System: Power x 1 (green)
PoE Port: Active, PoE ready/in-use x 1 (green)
Data Rate: 10/100/1000Mbps
Unit Output Voltage: DC 56V, 1.08A
Power Requirements: 100 - 240V AC at 50/60Hz, 1.5A max.
Power Consumption: 60 watts max.
Temperature
0 - 50 degrees Celsius (Operating)
-10 - 70 degrees Celsius (Storage)
Humidity: 5 - 95%, relative humidity, non-condensing
PoE Standard:
Ultra PoE over 4-pair UTP cable
IEEE 802.3at Power over Ethernet Plus End-span/Mid-span PSE
PoE Power Supply Type: End-span + Mid-span ...
