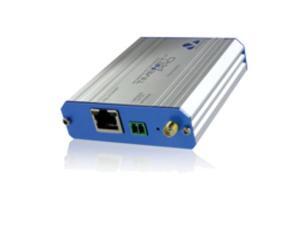

Specifications: Dimensions: 7.73 x 3.68 x 1.28"
Weight: 0.63 lb.
Interface Connections:
1 x 1 Gbps SFP Port
1 x DC Terminal Block
1 x DC RJ45 Port DC Injection
1 x 1000 Mbps Ethernet PoE Port
Typical Power Consumption 1.5W
PoE Output: PoE RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24V DC), or 4-Pair (24V DC or 50V DC) PoE
DC Output: Terminal Block, 2-Wire (24V DC or 50V DC)
Input DC Voltage: 16 to 57V
Specifications: Description: 8 Digital Inputs and 8 Digital Outputs
Digital Inputs: 8
Logic Level 0: -30.0V to +1.0V
Logic Level 1: +2.0V to +30V
Latched Inputs: Triggered by user programmable positive or negative edges, stays true until acknowledged
Counter Inputs: User progammable- counts positive or negative transitions up to 100Hz
Watchdog: Active high/low, Pulsed high/low
Digital Outputs: 8
Digital Output Type: Open drain transistor, protected MosFET. Short circuit protection up to 36V. Over temperature shutdown -175°C typical 150°C min
Maximum Output Load Voltage: 30 VDC
Maximum Output Current Sink: 0.85A per channel
Serial Gateway: RS485 NuDam/ADAM compatible gateway
Number of Ports: 1
Network Port Type: RJ45 Jack 10/100 MHz Autosensing, Cross Over Autosensing (MDIX)
Network Protocols: ICMP, IP, TCP, DHCP, HTTP
Protection: 1500V M...
Specifications: Processor:
MPC852T Motorola 66 MHz
Standard Memory:
32 MB RAM
Maximum Memory:
8 MB Flash Memory
Ports:
4 x RJ45 serial ports
Flow Control:
Hardware Flow Control
Functions:
The IOLAN SDS4 is ideal for connecting serial-based COM port, UDP or TCP socket based applications to remote devices. Perle's TruePort V5 re-director provides fixed TTY or COM ports to server based applications enabling communication with remote devices connected to Perle device servers. You can also tunnel serial data between devices across an IP network.
Management:
Web browser or secure web browser via https (SSL/TLS ), Perle DeviceManager software to manage single or multiple device servers, CLI -Telnet, SSH, shared console port SNMP, MIB II, Perle MIB, read and write Capabilities, SYSLOG, Port Buffering-...
Specifications: Standards:
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3af
Device Interface:
1 x Gigabit data/power in port
1 x Gigabit data out port
1 x Power out port
LED indicators
Adjustable output power DIP switch (5 V, 7.5 V, 9 V, 12 V)
Data Transfer Rate:
Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
Jumper Cable:
2.0 to 2.0 mm
2.0 to 2.5 mm
Power:
PoE network cable input: 48 V DC, 0.38 A
Output: 5 V (2 A), 7.5 V (2 A), 9 V (1.7 A), 12 V (1.2 A)
Consumption: 0.3 Watts (max.)
Features: Install a non-PoE device in a remote location
Splits a Gigabit PoE signal into separate power and Gigabit data sources
Set the output power to ei...
