Specifications: No. of Ports: 12
Pass Through Data Rates 10/100/1000 Mbps
PoE Output:
Pin Assignment and Polarity:
Data Pairs 1/2 (-) and 3/6 (+)
Spare Pairs 7/8 (-) and 4/5 (+)
Output Power Voltage: 54-57V DC
User Port Power: 72W Typ.
Aggregate Power: 1000W
Input Power Requirements:
AC Input Voltage: 100 to 240V AC
DC Input: 57V (RPS or another 9500G midspan)
AC Input Current: 450W Units: 5.5A @ 110V AC; 2.75A @ 220V AC
1000W Units: 12A @ 110V AC; 6A @ 220V AC
AC Frequency: 50 to 60 Hz
Management PowerView Pro included
Indicators:
System Indicator: AC Power (Green)
User Indicator: Channel Power (Green / Orange)
Connectors:
PoE ports and management port: Shielded RJ-45, EIA 568A and 568B
Console Port: USB Connector Type B
DC Connector: DC Block Terminal
RPS Com Connector: HD-D-sub-15
Specifications: Form Factor: Plug-in module
Ports: 10Gb Ethernet x 8
Connectivity Technology: Wired
Data Link Protocol: 10 GigE
Interfaces: 8 x 10GBase-T - RJ-45
Specifications: Standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, IEEE 802.1P, IEEE 802.1q
Data Rate
Copper: 10/100/1000 Mbps
Fiber: 1000 Mbps
Filtering Addresses 8K MAC Addresses
Max Frame Size
802.3ac tagged: 1628 bytes
untagged: 1632 bytes
Multimode
Min TX PWR: -10.0 dBm
Max TX PWR: -4.0 dBm
RX Sensitivity: -17.0 dBm
Max In PWR: 0.0 dBm
Link Budget: 7.00 dB
Features: Extend Network Distance
Bridge legacy 10/100 devices to a Gigabit backbone
Secure Uni-directional transmission
Auto-Negotiation (copper and fiber ports)
Switch Selectable Speeds (UTP) when Auto-Negotiation is off
Specifications: 4 RJ-45 autosensing 10/100/1000 ports
2 RJ-45 dual-personality 10/100/1000 ports
1 RJ-45 serial console port
Power: 100-127 VAC / 200-240 VAC; 50 /60 Hz
Mounting:
MSM720 controller supports the mounting options of the 2520-8 port, including EIA-standard 19 in. Telco rack or equipment cabinet (rack-mounting kit included); horizontal surface or wall mounting.
Minimum dimensions (W x D x H): 15.95 x 25.4 x 4.45 cm
Weight: 1.64 kg
Form Factor:
Wall Mountable
Rack-mountable
Specifications: Cable Type: QSFP+/SFP+
Cable Length: 9.84 ft.
Connector on First End: 1 x SFF-8436 QSFP+
Connector on Second End: 4 x SFF-8431 SFP+
Conductor: Copper
Device Supported: Network Device

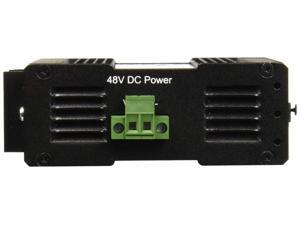

Specifications: Description: IEEE 802.3af PoE compliant or 48 VDC input from included AC power supply
Voltage: 100-240 VAC
Current: 1.0 / 0.4 A
Frequency: 50 / 60 Hz
