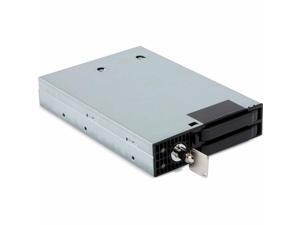

Mobile Rack Drives Support: 2.5" & 3.5" Drives to 1 x 5.25" Bay
Mobile Rack Interface: SATA I/II/III/SAS
Protection Case: Multiple Drives
Compatible Products: 1 x 3.5" device or 1 x 3.5" hard drive (no backplane)
2 x 2.5" SATA or SAS (single channel) HDD/SSD
Specifications: Host Interface: 2 x 7pin SATA
Compatible 2.5" Drive Heights: 7mm, 9.5mm
Transfer Rate: Up to 6 Gb/sec. (depending on hard drive speed)
Power Input: Single 15pin SATA power port
Insert& Extract connection Via: Direct SAS / SATA hard drive connection
Structure: Plastic and metal
Power Indicator: Solid blue LED
HDD Access Indicator: Blinking blue LED
Dimension (L x W x H): 5.95" x 1.63" x 5.74"
Weight: 0.76 lb.

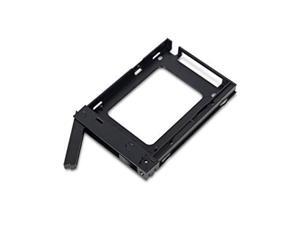

Conversion Tray: For ToughArmor (MB992, MB996) Series
Mobile Rack Drives Support: 1 x 2.5" Drive to 3.5" Bay
Mobile Rack Interface: SATA I/II/III
Protection Case: Single Drive
Specifications: HDD Interface: 2.5" SATA I / II / III hard drive and SSD (Up to 9.5mm drive thickness)
Structure: Metal
Dimension (L x W x H): 117.4 x 69.8 x 11.5mm
Weight: 51.5g
Features: Compatible hard drive caddy (tray) for ICY DOCK ToughArmor MB992 and MB996 series SATA hot swap backplane RAID cage
Specifications: Device Support: SATA Hard Driver
Device Size: 2.5"
Material: Metal
Dimensions: 120 x 102 x 15 mm
Features: Easily mount your 2.5" HDD or SSD onto your 3.5" drive bay
Universal mounting holes for most common PC case
Compatible with 9.5, 12.5, 15mm drives
Perfect for System Integrators and IT Professionals
Specifications: Includes 1 x Combined 7+15 pin SATA plus LP4 Power to SATA Cable
Connectors 1x SATA 7 pin Female Connector
Connectors 1x SATA 15 pin Female Connector
Connectors 1x LP4 Male Connector
Features: Mount a 2.5in SATA hard drive to any computer with an available 3.5in bay. This Serial ATA hard drive mounting kit allows you to install a 2.5in SATA hard drive in a 3.5in drive bay.
The 2.5in to 3.5in SATA hard drive mounting kit features a sturdy aluminum bracket, as well as a combined 7+15 pin SATA + LP4 Power to SATA cable - which helps simplify installation and reduce clutter within the computer case.
Compatible Products: SATA/Single channel SAS (SAS host required)
Specifications: Number of Drives: 24
Max Drive Height: 7mm
Drive Bay: 3 x external 5.25" drive bay
Host Interface: 6 x miniSAS HD (SFF-8643)
Power Input: 6 x 15 pin SATA power connector
Transfer Rate: SATA 3.0 up to 6Gbps / SAS 3.0 up to 12Gbps (single channel)
Support HDD Capacity: No Limitation
Drive Cooling: 1 x 80 mm Fan
Structure / Material: Full Metal
Support Hot-Swap: Yes
Package Contents: Device
User manual
ID Plug
Screws
Specifications: Drive Installation: Fixed
Drive Type: mSATA (Mini SATA)
Interface : SATA
Number of Drives: 2
Chipset ID: JMicron JMS562
Drive Connectors: 2 - mSATA (52 pin; Mini SATA) Receptacle
Host Connectors: 1 - SATA Data & Power Combo (7+15 pin) Receptacle
Maximum Data Transfer Rate : 6 Gbps
Port Multiplier: Yes
RAID: Yes
Supported RAID Modes:
- BIG (Spanning or Concatenation)
- JBOD - (Just a Bunch of Disks)
- RAID 0 (Striped Disks)
- RAID 1 (Mirrored Disks)
Type and Rate: SATA III (6 Gbps)
Mobile Rack Drives Support: Multi 2.5" Drives to 3.5" Bay
Mobile Rack Interface: SATA I/II
Specifications: Product name: DataPort 25 SATA 6G
Host (I/O) Ports: (1) SATA: up to 6 Gbps
Drive Types Supported:
SATA 2.5" drives
SATA SSD (solid state drives)
SATA Speed: 6G
Insertion Rating: up to 30,000 carrier insertions
Number of bays: 2
Number of LEDs: 2
Description of LEDs: Power, drive activity
Construction material(s): Rugged all-metal construction
Dimensions: 6.10" x 4.02" x 1.02" (155mm x 102mm x 26mm)
Weight: 0.90 lbs. (0.41 kg)
Compliancy: FCC, CE, RoHS
